Shop Concrete Block Machines & Production Lines
Browse our complete range of automatic, mobile, and stationary block machines. European design with airbag systems and four vibration motors — engineered for higher density and lower noise.
High quality block machine
659 products found
High quality block machine
QTJ4-26 Block Making Machine for Hollow Block | Factory Supply
<p><strong>QTJ4-26 Block Making Machine, 35.5 kN Vibration Force, 850×450×20 mm Pallet Size</strong> — configured for hollow and solid block production with dual vertical vibration motors and upper mould pressing for consistent density across formats. Output figures stated per block size: 480 pcs/h based on 390×190×190 mm hollow block (4 pcs/mould), 2100 pcs/h based on 240×115×53 mm solid brick (18 pcs/mould). The four-guide-pillar structure keeps forming stable through the 26 s moulding cycle. Every quotation includes a line layout and capacity calculation sheet stating the exact format assumed for each output figure.</p>
High quality block machine
Qt4-25a Automatic Concrete Block Making Machine | Manufacturer
<p><strong>Qt4-25a Automatic Concrete Block Making Machine</strong>, 27.5 kW rated power, 60 kN vibration force, 1020×850 mm pallet — positioned in the mid-tier of our complete block machine range spanning semi-automatic to high-capacity lines.</p> <ul> <li>Hydraulic pressure and vibration matched to your mix design and local aggregate for consistent block density across hollow and solid formats</li> <li>Voltage configurable to your local supply, with PLC language confirmed before production</li> <li>Capacity calculations document the exact block format and shift hours assumed for each output figure</li> <li>Supplied as one matched system: machine, mould, pallet and handling specified together rather than assembled from separate sources</li> </ul>
High quality block machine
Concrete Brick Making Machine QTJ4-24 – Manufacturer
<p><strong>QTJ4-24 Semi-Automatic Concrete Block Making Machine, 11.95kW, 900×450mm Pallet, 24–26s Cycle</strong> — positioned at the entry tier of the Shiyue range for first-plant buyers and workshop additions.</p> <ul> <li>Table vibration with fluctuation molding matched to four mould formats from 400×200×200mm hollow blocks to 240×115×53mm solid bricks</li> <li>Pairs with J350 mixer and 6m belt conveyor for a complete starter line</li> <li>900×450mm pallet sized to standard curing racks and forklifts in small plants</li> </ul> <p>Configuration is set against your actual mix design and local aggregate, not a catalogue default — with mould, pallet and handling specified as one matched system.</p>
High quality block machine
Full Range QT12-15 Fully Automatic Flyash Brick Making Machine
<p>Mould, pallet and handling are specified as one matched system against your actual block format and local aggregate, not assembled from separate suppliers.</p>
High quality block machine

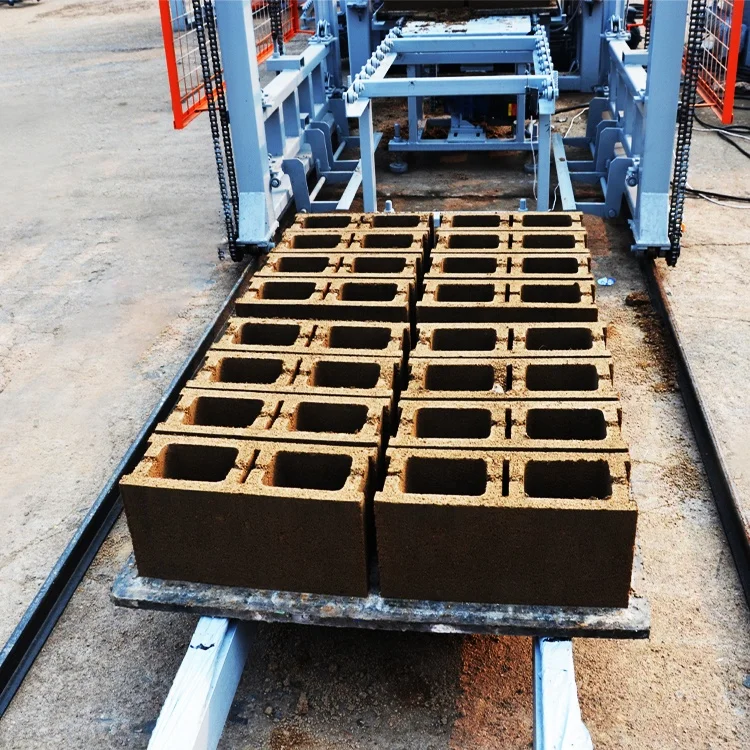

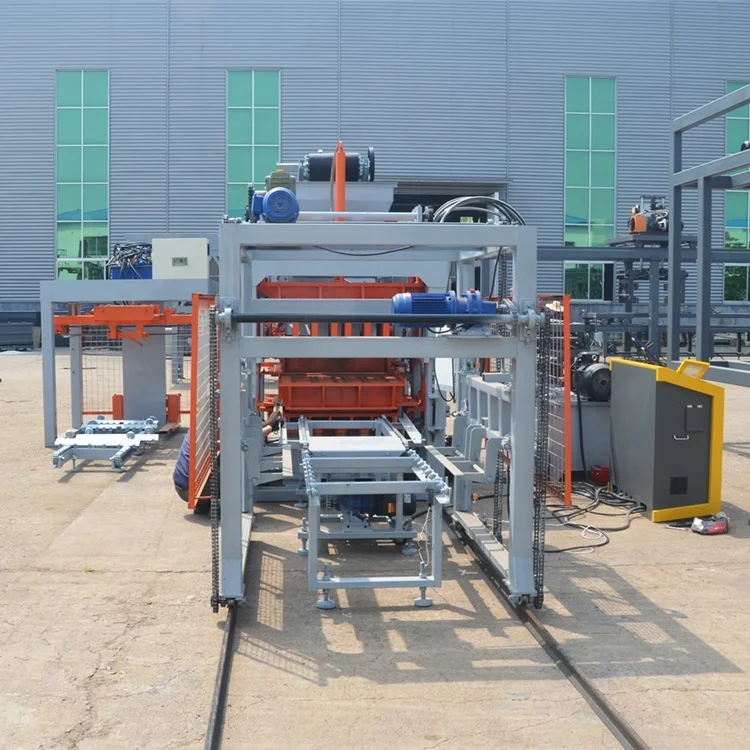

QT6-15 Hollow Block Making Machine | Full Range Manufacturer
<p><strong>QT6-15 Hollow Block Making Machine, 37 kW, 45 kN Vibration Force, PLC Touch Screen</strong> — positioned in the mid-to-high tier of our automatic range, this press pairs platform vibration at 0-60 Hz with independent hydraulic demolding for consistent output across hollow block, solid brick and paving formats on an 880×850 mm pallet.</p> <ul> <li>Capacity stated per block format, not just cycles per hour</li> <li>Voltage, frequency and PLC language confirmed before production</li> <li>Machine, mould and pallet specified as one matched system</li> </ul>
High quality block machine

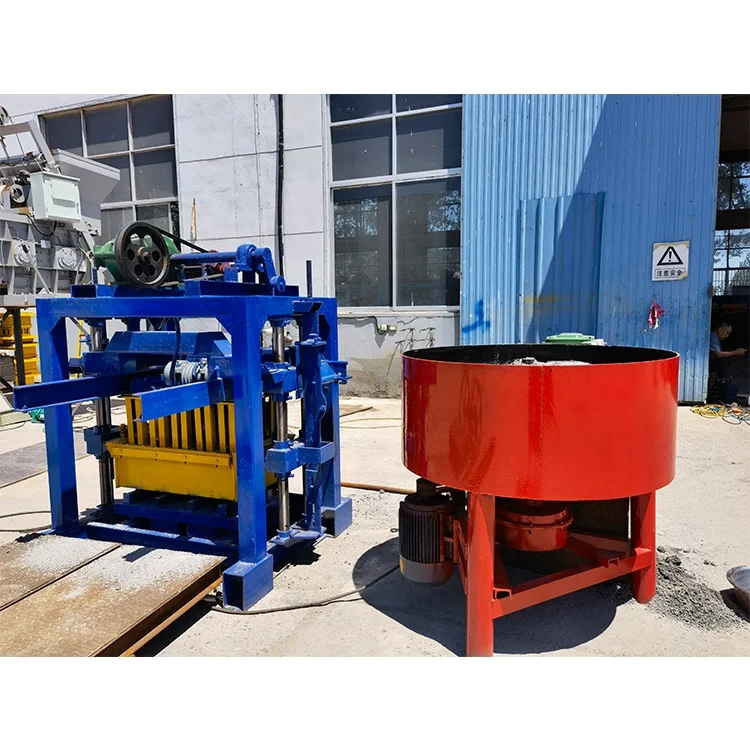

QTJ4-40 Cement Brick Making Machine for Small Businesses | Full Range
<p><strong>QTJ4-40 Semi-Automatic Concrete Block Making Machine, 9.5 kW, 40 s Molding Cycle</strong> — positioned in Shiyue's entry tier for buyers who need reliable small-scale output before scaling up. Dual vibration combines bed mould vertical action with upper mould compression to match block density to your local aggregate and mix design. Pallet size, voltage, and control language are confirmed against your site conditions before production begins. Every capacity figure we quote states the exact block format and cycle time it assumes — no surprises at commissioning.</p> <ul> <li>Mould drawings cover every format your market sells, with custom design available to buyer drawings</li> <li>Machine, mould, pallet and handling specified as one matched system from a single-focus block machinery supplier</li> <li>Factory test record and packing photographs provided before shipment so you verify performance remotely</li> </ul>
High quality block machine
QTJ4-24 Cement Hollow Block Paver Making Machinery – Manufacturer
<p><strong>QTJ4-24 Semi-Automatic Concrete Block Making Machine, 11.95kW, 900×450mm Pallet</strong> — configured as a matched system with JQ350/JQ500 mixer and 6m/8m conveyor, covering hollow block, solid brick, and paver formats. Table vibration feeding combined with fluctuation vibration molding ensures consistent block density across your local mix design. Cycle time of 24–26s applies to standard hollow block format; confirm actual output per your target mould size.</p> <ul> <li><strong>Four mould options</strong>: 400×200×200mm (4 pcs), 390×240×190mm (3 pcs), 390×120×190mm (6 pcs), 240×115×53mm (21 pcs)</li> <li>Electrical-mechanical interlocking control reduces operator error during start-up</li> </ul> <p>Shiyue specifies machine, mixer, conveyor and pallet together as one coordinated line — not sourced separately — so cycle times match and the press is never left waiting.</p>
High quality block machine
QT8-15 Hydraulic Block Making Machine – Full Range Manufacturer
<p><strong>QT8-15 Hydraulic Concrete Block Making Machine, 21 MPa, 45 kN Vibration, 950×900 mm Pallet</strong> — positioned in the mid-to-high output tier of a complete range spanning automatic, semi-automatic and mobile block machines, helping buyers match investment level and plant footprint to their target format before narrowing down.</p> <ul> <li>Platform vibration at 2800–4500 r/min paired with hydraulic demolding for consistent block density across hollow, solid, paver and interlocking formats</li> <li>55.5 kW overall power with 8 T total mass, factory area requirement 300 m²</li> <li>CE-marked, shipped in 1×40HQ container</li> </ul> <p>Configuration is set against your actual mix design and local aggregate, not a catalogue default, with line layout and capacity calculation stated per block format.</p>
High quality block machine
QT10-15 Automatic Cement Block Making Machine | Full Range
<p><strong>QT10-15 Automatic Cement Block Making Machine, PLC Control, Independent Hydraulic Station</strong> — positioned in the high-capacity tier of the Shiyue range, this model uses vertical station mode resonance with automatic FM-AM to maintain consistent block density. Cycle times are stated per format: 15-20s for hollow blocks, 20-25s for pavers, with output calculated against each specific block size and mould cavity count.</p> <ul> <li>Machine, mould, pallet and handling equipment are specified as one matched system rather than sourced separately, so pallet size, voltage, frequency and PLC language are confirmed before production.</li> </ul>
High quality block machine
QT12-15 Block Making Machine for Concrete Blocks – Full Range Manufacturer
<p><strong>QT12-15 Hydraulic Concrete Block Making Machine, 62 kW, 1300×900 mm Pallet</strong> — sits at the high-capacity automatic tier of the Shiyue range. Table vibration with frequency conversion and four-axis synchronization delivers consistent density across hollow, solid, paving and interlocking formats. Moulding cycle 15-30 seconds varies by block type, so output is stated per your target format, not a single headline number. One machine, multi-mould capability.</p> <p>Specified as a matched system — machine, mould, pallet and handling — against your actual mix design and local aggregate, with line layout and capacity calculation confirming the format assumed.</p> <ul> <li>Model: QT12-15</li> <li>Total Power: 62 kW</li> <li>Pallet Size: 1300×900 mm</li> <li>Vibration: Table type, four-axis synchronized</li> <li>Moulds: Customized to buyer's block format</li> <li>Voltage: Customized to local industrial supply</li> <li>Versatility: Wall blocks, porous bricks, pavement bricks, slope protection bricks</li> </ul>
High quality block machine
Block Machine with Automatic Interlocking Mold – Factory Supply
<p><strong>QT4-15A Fully Automatic Concrete Brick Making Machine, 16-21 MPa, 55 kN Vibration, 880×550 mm Pallet</strong> — positioned in the mid-tier automatic range for buyers scaling beyond workshop volume. Hydraulic pressure and platform vibration at 4200 r/min are matched to your local aggregate and mix design for consistent block density across hollow blocks, pavers and interlocking bricks. Mould change and automation level are specified as one integrated system.</p> <ul> <li>Machine, mould, pallet and handling configured together against your actual block format</li> <li>Capacity calculation provided per format with cycle time assumptions stated upfront</li> <li>Voltage, frequency and PLC language confirmed before shipment to avoid commissioning delays</li> </ul>
High quality block machine
QT6-15 Hydraulic Block Machine Full Range Manufacturer
<p><strong>QT6-15 Hydraulic Block Making Machine, 37 kW, 45 kN vibration, PLC touch screen</strong> — positioned in the mid-to-upper tier of our full automatic range. Hydraulic pressure and platform vibration are matched to your mix and block format, with pallet size 880×850 mm confirmed against your curing area and forklift before dispatch.</p> <ul> <li>Output stated per block format: hollow, solid, and paver cycles listed separately</li> <li>Independent hydraulic station isolated from vibration for longer service life</li> <li>Mould drawing, pallet spec, and factory test record supplied with quotation</li> </ul>
Engineered for global performance.
European Design
Airbag systems & 4 vibration motors for higher density
108+ Countries
Trusted exports across Africa, MENA, Asia, LATAM
Full Customization
320+ engineers tailor solutions to local materials
Fast Delivery
In-stock models ship within 15-30 days
Can't find the right model?
Tell us your block size, daily capacity, raw materials and voltage. Our engineers will design a tailored solution within 24 hours.
