Product Details

Products Description

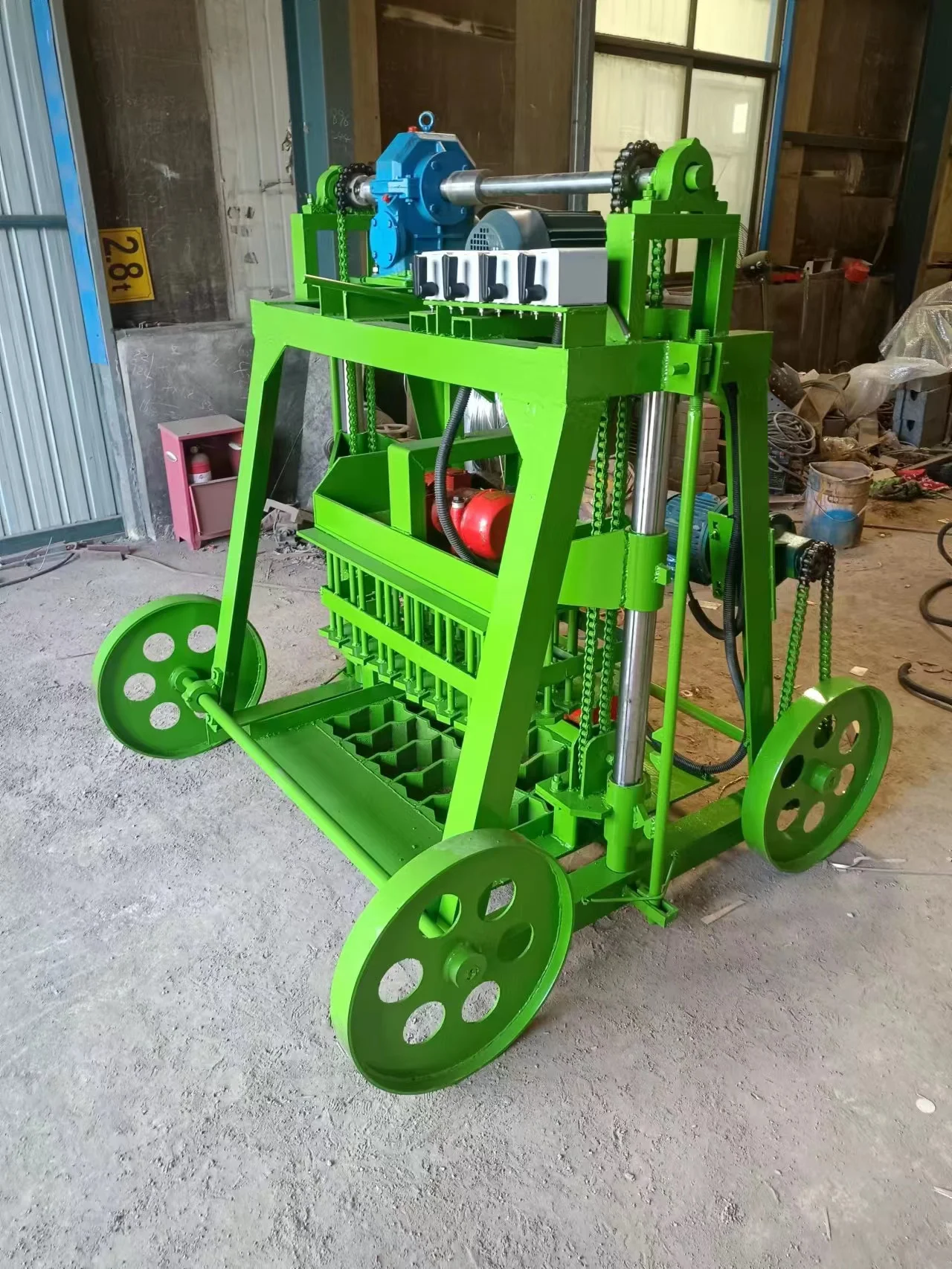

QMR4-45 egg laying block making machine Introduction

1.It is one kind of small sized block forming machine excellent in saving energy and labor force.
2.It is manufactured on the base of technical modifications to the original block shaping machines
3.No need of concrete floor and pallet.It can product different specifications of concrete products via changing the block mould.
4.Using diesel engine to supply hydraulic pressure. So the block density becomes higher shaping speed quicker and block strength more even.
5.This model of machine can be suitable to the customers who have any kinds of existing cement working sites. where the electricity may be not sufficient. and the consumption pallets can be reduced.
Product Parameters
QMR4-45 block machine parameters
Dimension
2420*1320*1650mm
Moulding cycle
40-45s
Pallet size
No need pallet
weight
810kg
Power
6kw
Diesel engine
6kw or 6-8HP
Voltage
220v or 380v or according to client local voltage
productivity
3000pcs/day
QMR4-45 block machine productivity
Item
size
quantity
Molding cycle
Productivity/day(8 hours)
Hollow block
400*200*200
4pcs/mould
40-45s
3000pcs
400*150*200
5pcs/mould
40-45s
3500pcs
400*120*200
6pcs/mould
40-45s
4500pcs
FAQ
1. Is this block machine suitable for us to use?
Could you please tell us the investment plan? the capacity you want? What kind of bricks do you want to make? Then the most suitable model can be recommended to you.
2. Which industry does this block machine usually be used in?
Hollow Block. Muticelullar bricks. Paving bricks. Standard bricks. etc.
3. How to use the block machine?
We will send the operating manual to you after you purchase the machine.
4. How about the after sale service of block machine?
one year guarantee for the whole machine. we keep the superior quality machine for you.
5. What's your payment terms?
Our common payment is 30% deposit by T/T before arrange the machine production. 70% balance before the delivery. if other payment term. we can negotiate.
Packing & Delivery
Customer working site
