Shop Concrete Block Machines & Production Lines
Browse our complete range of automatic, mobile, and stationary block machines. European design with airbag systems and four vibration motors — engineered for higher density and lower noise.
Stationary block machine
398 products found
Stationary block machine

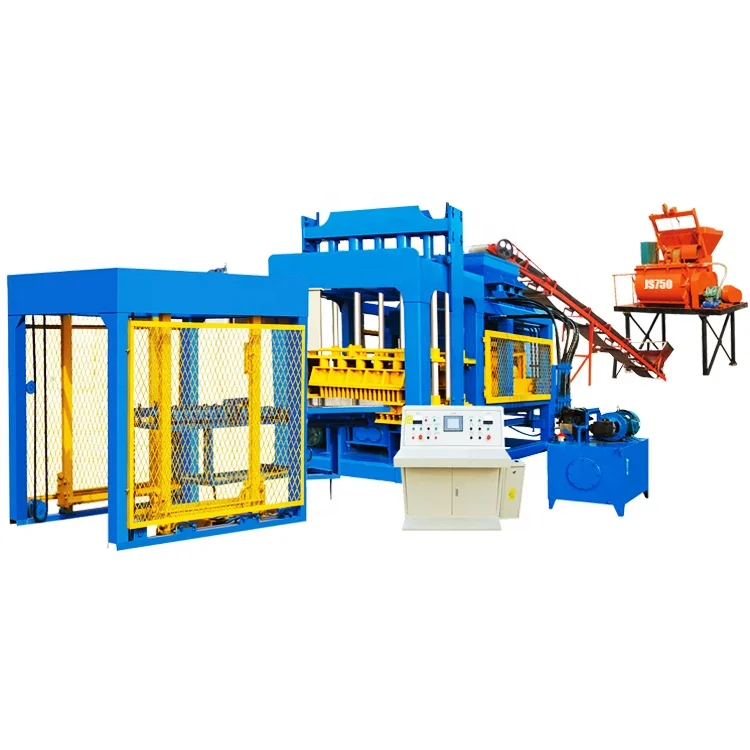

QT12-15 Fully Automatic Stationary Block Making Machine – Full Range
<ul> <li>Line layout and capacity calculation provided per block format, machine spec sheet with confirmed voltage and control language, mould drawing with custom options included before shipment.</li> </ul>
Stationary block machine

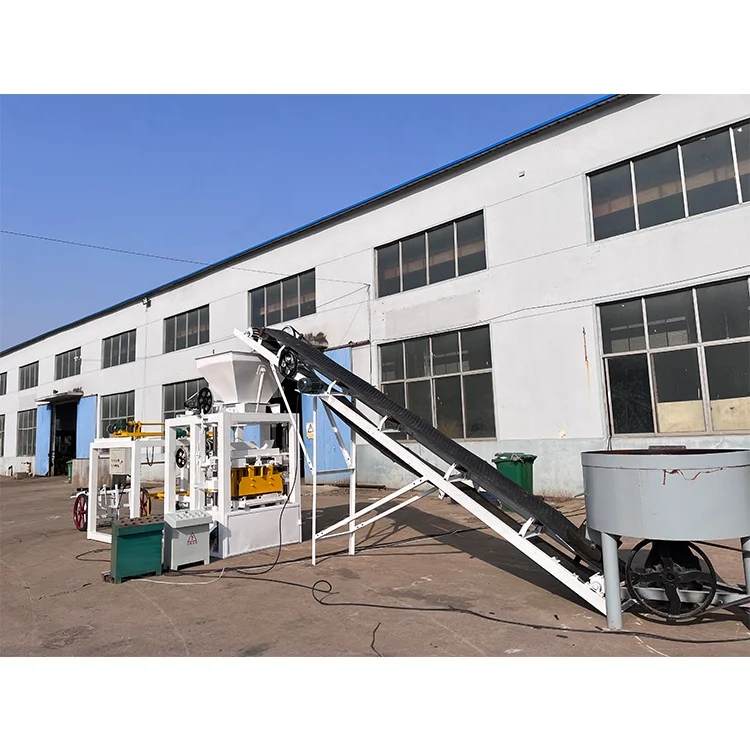

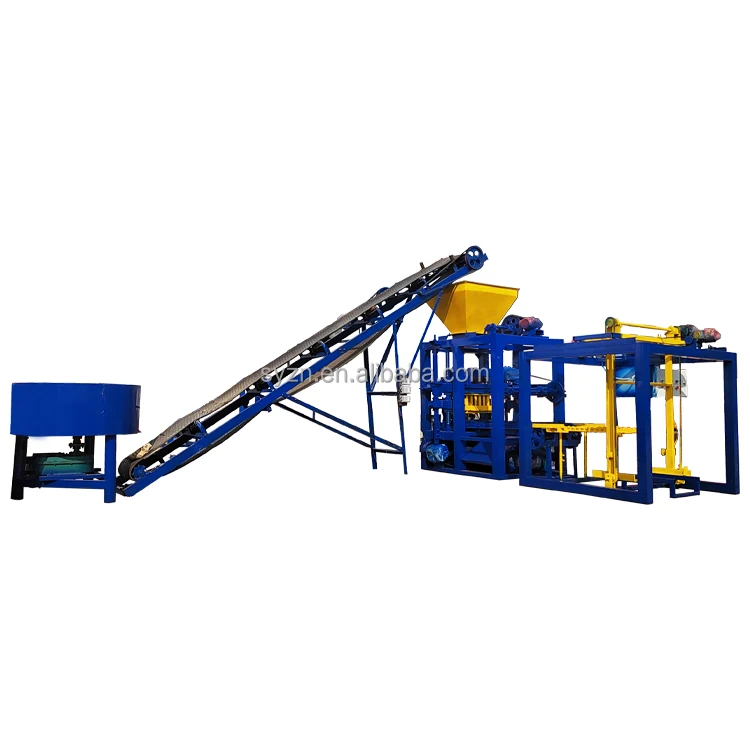

QTJ4-24 Block Machine with Hollow Concrete Block – Factory Supply
<p><strong>QTJ4-24 Semi-Automatic Concrete Block Making Machine, 850×450 mm Pallet, 45 kN Vibration</strong> — mechanical molding with dual upper and lower vibrators delivers consistent block density across hollow, solid, and paving formats.</p> <ul> <li>24–26 s molding cycle with full-automatic spiral material distribution</li> <li>11.95 kW overall power for accessible energy cost in small to medium plants</li> <li>Mould formats include hollow block, solid block, interlocking brick, and paving brick</li> </ul> <p>Positioned in the entry-to-mid tier of our stationary range, this model lets you compare output tiers and plant footprint before committing to a higher automation level. We specify cycle time against your actual block format so daily throughput is transparent, not guessed.</p> <p>Machine, mould, pallet and handling are matched as one system — configured to your local aggregate and target format, not a catalogue default.</p>
Stationary block machine

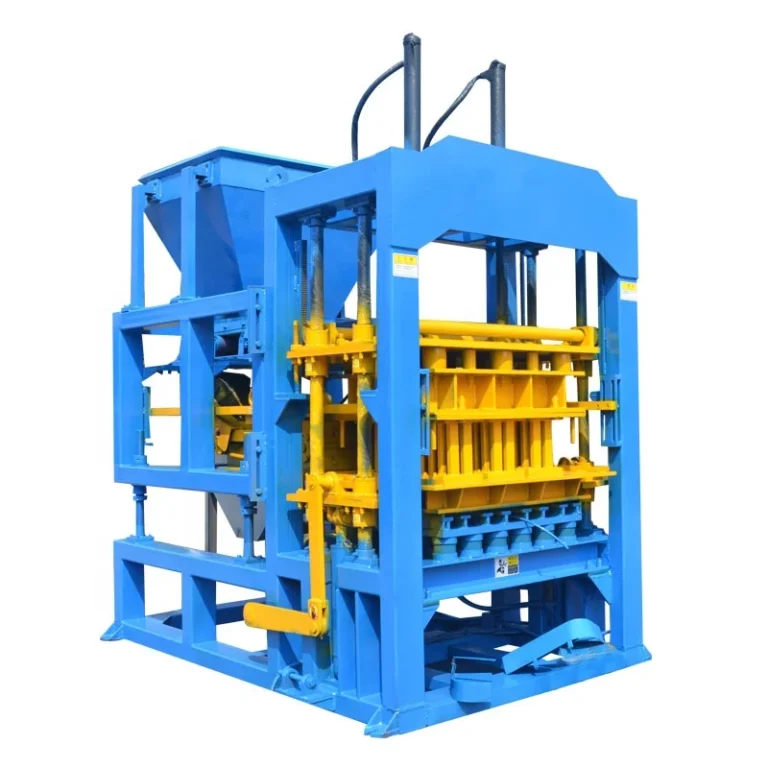

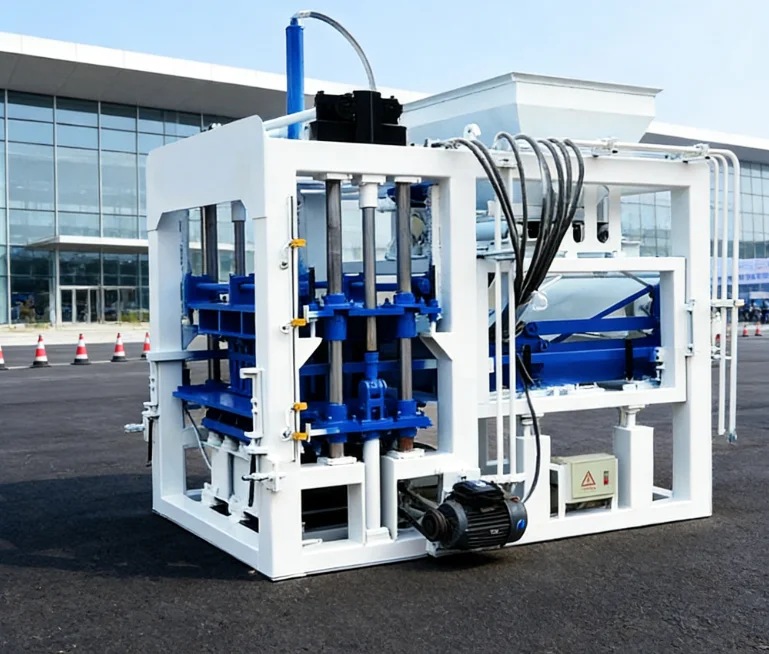

QT5-15 Stationary Block Machine for Hollow Blocks – Full Range
<p><strong>QT5-15 Stationary Block Machine, 1100×550mm Pallet, 21MPa Hydraulic Pressure, 2800–4500 r/min Vibration</strong> — sits in the mid-tier automatic range, balancing output capacity with plant footprint for buyers scaling up from semi-automatic lines or starting a new block operation. Platform vibration paired with hydraulic demolding ensures consistent block density and clean release across hollow, solid, and paver formats.</p> <ul> <li>Capacity stated per block format, not a single catalogue figure</li> <li>Machine, mould, pallet and handling specified as one matched system</li> <li>Factory test record and full documentation provided before shipment</li> </ul>
Stationary block machine
QTF3-20 Semi-Automatic Concrete Block Making Machine – Full Range
<p><strong>QTF3-20 Semi-Automatic Concrete Block Making Machine, Hydraulic Press with Vibration, Multiple Mould Formats</strong> — positioned in the semi-automatic tier of our stationary block machine range, bridging small workshop output and fully automatic lines.</p> <ul> <li>Output capacity stated per block format: 540 pcs/h based on 400×200×200mm hollow block, 2,700 pcs/h based on 200×100×60mm paving block, 1,440 pcs/h based on 225×112.5×60mm interlocking block</li> <li>Hydraulic pressure combined with vibration ensures consistent block density across hollow, paving, and interlocking formats</li> <li>Semi-automatic configuration supports future upgrade to higher automation tiers</li> </ul> <p>Line layout, capacity calculation per format, and mould drawings are confirmed before production, with voltage and control language verified in writing to avoid commissioning delays.</p>
Stationary block machine
Automatic Cement Hollow Brick Production Machine QT4-15 – Manufacturer
<p><strong>QT4-15 Stationary Block Machine, 16 MPa Hydraulic Pressure, 40 kN Vibration, Siemens PLC</strong> — positioned in the mid-tier of our full machine range, this model balances hydraulic pressing with platform vibration at 4600 r/min to suit hollow, porous and solid block formats. Pallet size 950×550 mm integrates with standard curing setups, while motor and hydraulic valve brands remain selectable to match your maintenance supply chain. Capacity figures are stated per block format with mould cavity count and cycle time, so daily output projections stay realistic. We specify machine, mould, pallet and handling as one matched system rather than assembling from separate suppliers.</p>
Stationary block machine
QT7-15 Automatic Concrete Block Making Machine – Full Range
<p><strong>QT7-15 Stationary Block Machine, 45kW, 1150×700mm Molding Area</strong> — positioned in the mid-to-high output tier of our stationary range, this system pairs hydraulic pressure with adjustable platform vibration (2800–4500 times/min) to match your local aggregate and target block format. Siemens PLC controls cycle management, while carburized moulds rated to 54–58 HRC support frequent format changes without premature wear. Configuration validated against your actual mix design, pallet size, and curing layout before production.</p>
Stationary block machine
QTF3-20 Stationary Block Machine – Factory Supply for Hollow & Paving Bricks
<p><strong>QTF3-20 Stationary Block Machine, 17.5KW, Semi-Automatic Control, Platform Vibration</strong> — configured for hollow, paving, interlocking and porous brick production with double-layer color material feeding in a single cycle.</p> <p>Hydraulic pressure and vibration force are matched to your mix design and target block format, with pallet size selected to fit your existing curing area and forklift. The compact welded frame integrates host machine, pallet feeder, material feeder and hydraulic station as one coordinated line.</p> <p>Machine, mould, pallet and handling equipment are specified together as a matched system, not assembled from separate suppliers.</p> <ul> <li>Total power 17.5KW with no-contact proximity switch monitoring</li> <li>Raw materials: cement, sand, fly ash, slag, coarse aggregate</li> <li>Line components: host machine, feeding system, color material machine, pallet feeder, conveyor, hydraulic station, electricity box</li> <li>Mould change supported for environmental brick, interlock brick, color pavers, grass brick, hollow brick and standard brick formats</li> </ul>
Stationary block machine
QTJ4-40 Semi-Automatic Block Making Machine | Full Range
<p><strong>QTJ4-40 Semi-Automatic Block Making Machine, 10.4kW, 40s Moulding Cycle</strong> — sits at the entry tier of our stationary block machine range, offering a defined starting point before scaling to higher automation. Dual vibration combines bed mould vertical vibration with upper mould compression for uniform block density, while the 850×450×20mm pallet size is matched to curing area layout. Output figures stated per block format: 2800 pcs/day (400×200×200mm hollow), 3600 pcs/day (400×150×200mm hollow), 6400 pcs/day (225×112.5×60mm solid).</p> <ul> <li>Configuration set against buyer's actual mix design and local aggregate</li> <li>Mould design and supply for formats the buyer's market sells</li> <li>Installation, commissioning and operator training support included</li> </ul>
Stationary block machine
QT7-15 Automatic Hydraulic Hollow Block Making Machine | Full Range Manufacturer
<p><strong>QT7-15 Automatic Hydraulic Hollow Block Making Machine, 100 kN Vibration, 1150×700mm Pallet</strong> — positioned in the upper-mid tier of our stationary range, bridging semi-automatic output and high-capacity lines. Hydraulic pressure paired with platform vibration at 2800–4500 cycles/min handles mixes from lightweight hollow blocks to dense pavers, while the Siemens PLC ensures repeatable cycles across formats.</p> <ul> <li>Complete matched line: PLD1200 batching, JS500 mixer, pallet feeder, SY-4 stacker</li> <li>Molding area 1150×700mm defines format coverage and pieces per cycle</li> </ul> <p>Capacity and layout calculations state the block format assumed for each figure, so daily output matches your actual product mix.</p>
Stationary block machine

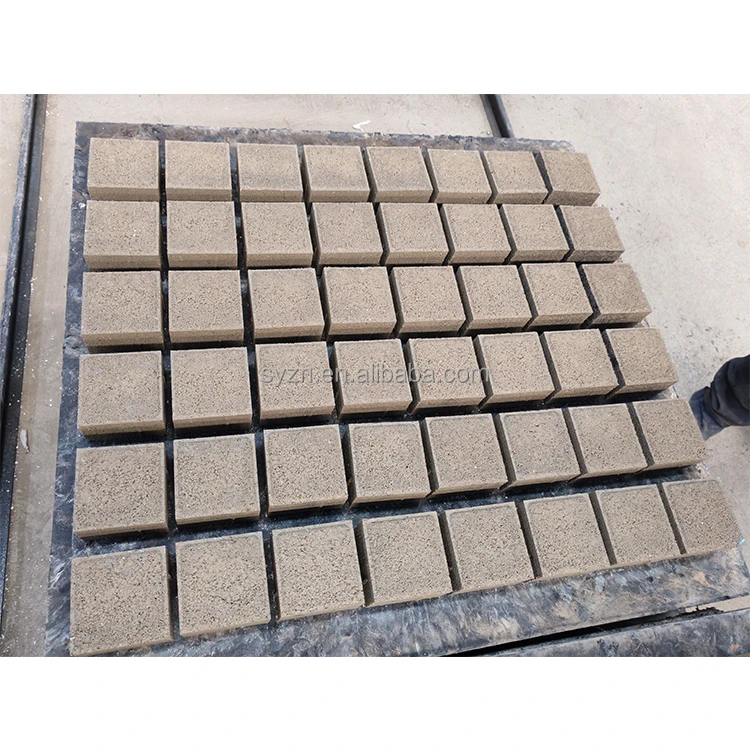

QTF3-20 Automatic Hydraulic Block Machine for Hollow Brick – Manufacturer
<p><strong>QTF3-20 Automatic Hydraulic Block Machine, Platform Vibration, 17.5 kW</strong> — semi-automatic stationary block machine for hollow, solid, and interlocking brick production across multiple formats.</p> <p>Sits in our entry-level stationary range, where platform vibration and #12 U-bar frame combine for consistent density, while pallet feeder and block conveyor remain selectable to match your plant layout.</p> <ul> <li>Raw materials: cement, sand, fly ash, slag, coarse aggregate</li> <li>Recommended mixer: JQ350 with 8m conveyor</li> <li>Mould: up/down type with demold cylinder</li> </ul> <p>Single-focus block machinery supplier — machine, mould, pallet, and handling specified as one matched system, not assembled from separate vendors.</p>
Stationary block machine

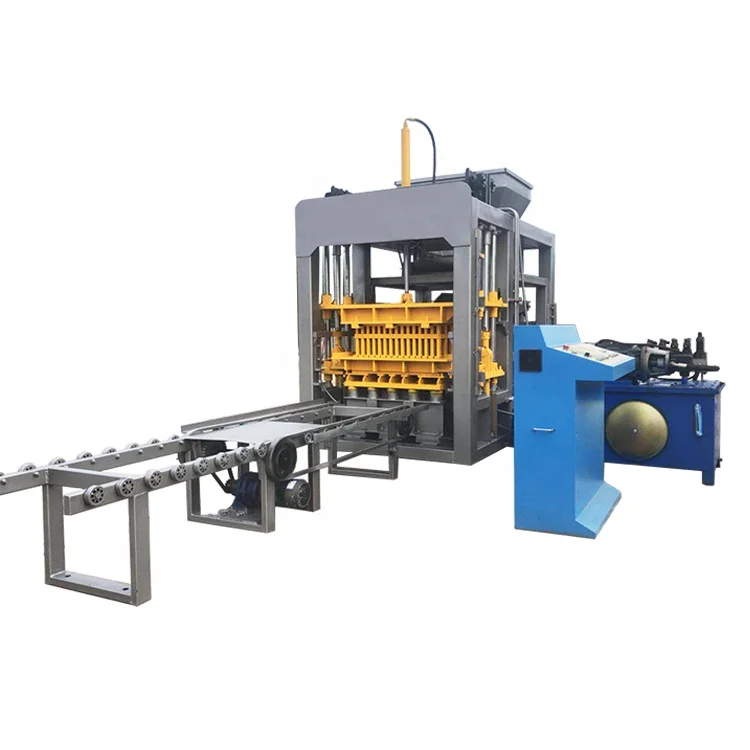

QT5-15 Block Machine for Hollow Block | Full Range
<p><strong>QT5-15 Stationary Block Machine, 21 MPa Hydraulic Pressure, 1100×550 mm Pallet</strong> — fully automatic PLC-controlled press with platform vibration adjustable from 2800 to 4500 r/min, supporting hollow blocks, solid blocks, pavers, and curbstones on one machine.</p> <ul> <li>Positioned in the mid-tier of our stationary range, bridging entry-level semi-auto and high-capacity lines so buyers can match investment to current output needs with a clear upgrade path.</li> <li>Mould change, vibration force, and hydraulic pressure are specified together against your local mix design and target block format.</li> <li>Cycle time and daily output are quoted per block format — not a single blanket capacity number — so your plant plan matches real production.</li> </ul>
Stationary block machine
Clay Interlocking Brick Making Machine for Hollow Block – Manufacturer
<p><strong>Eco Brava Clay Interlocking Brick Making Machine, Semi-automatic, 5.5 kW / 12 Hp Diesel, 16–20 MPa</strong> — positioned at the entry tier of a complete stationary block machine range that scales from portable units to high-capacity automatic lines. Hydraulic pressure is matched to clay and cement mix designs for consistent interlocking brick strength, while interchangeable moulds allow format changes on one machine frame. Dual power options suit sites with unreliable grid supply. - Capacity calculation, mould format list and voltage confirmation provided before production to ensure the selected tier matches your target block format and daily output.</p>
Engineered for global performance.
European Design
Airbag systems & 4 vibration motors for higher density
108+ Countries
Trusted exports across Africa, MENA, Asia, LATAM
Full Customization
320+ engineers tailor solutions to local materials
Fast Delivery
In-stock models ship within 15-30 days
Can't find the right model?
Tell us your block size, daily capacity, raw materials and voltage. Our engineers will design a tailored solution within 24 hours.
