Home Products Automatic block machine Promotion SHIYUE QT8-15 Brick Making Machinery in South America Hydraulic Automatic Bricks Production Line
Promotion SHIYUE QT8-15 Brick Making Machinery in South America Hydraulic Automatic Bricks Production Line Automatic block machine
Automatic block machine
Concrete Machinery

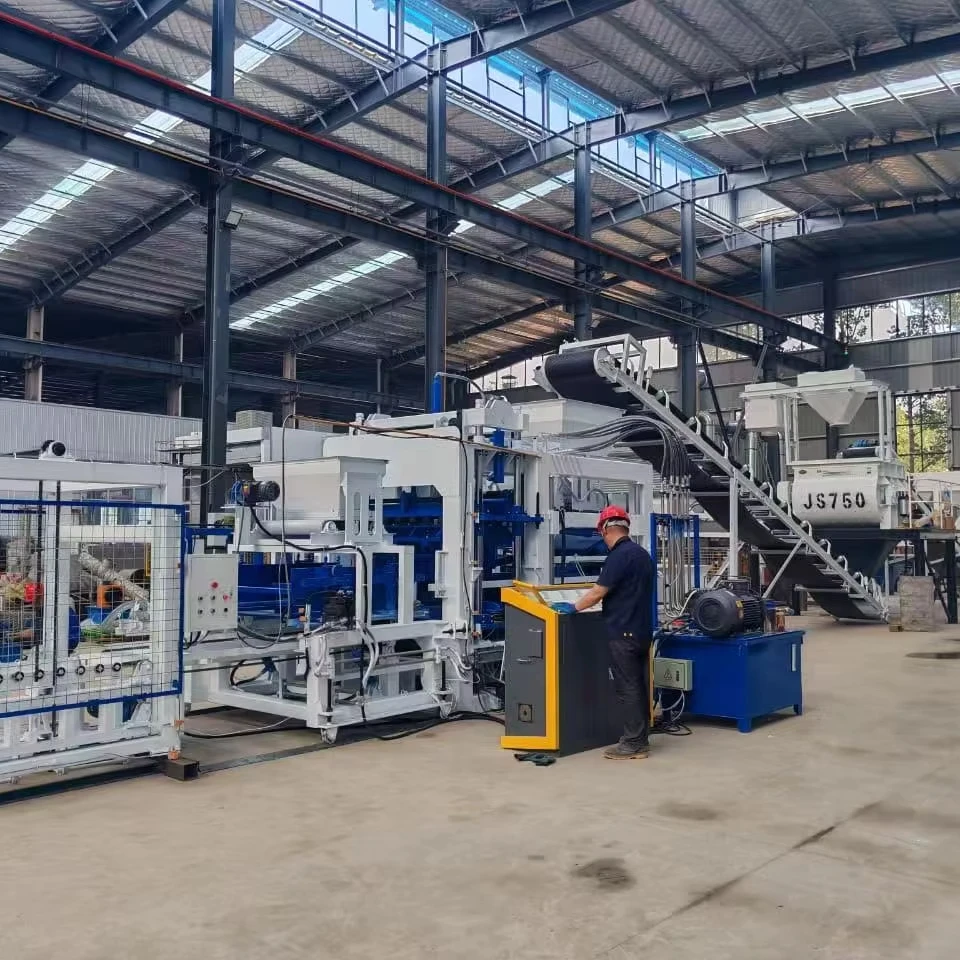

Promotion SHIYUE QT8-15 Brick Making Machinery in South America Hydraulic Automatic Bricks Production Line

Products Description QT8-15 Block making machine of QT8-15 Concrete Block Making Machine New Condition Widely Used Brick Production Line HyderabadFEATURES:High degree of automation. intelligent electronic control. automatic process is controlled by advanced PLC (Programmable Controller). input and store of process data and touch screen. it have ideal of flexible Human Conversation Interface. Good reliability. Hydraulic […]

CE Certified
European Standards
Ships 15-30 Days
Fast Delivery
108+ Countries
Global Export
After-Sales Support
Training Included
Get Price & Quote WhatsApp Now
24h Response
Free Technical Consultation

Product Details

Products Description
QT8-15 Block making machine of QT8-15 Concrete Block Making Machine New Condition Widely Used Brick Production Line Hyderabad
FEATURES:High degree of automation. intelligent electronic control. automatic process is controlled by advanced PLC (Programmable Controller). input and store of process data and touch screen. it have ideal of flexible Human Conversation Interface. Good reliability. Hydraulic system choosing improved technology and perfected workmanship of design. Use independent integrated type hydraulic station. Avoid influence of dust and main machine vibration for hydraulic system. Make sure process reliability of hydraulic system.The machine is well-adapted. It can produce different blocks by changing mould. maximal degree cater to marketplace. Plays a mechanical maximum functionality.
QT8-15 BLOCK MACHINE
This equipment QT8-15 Block Molding Machine is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient. easy-operated and easy-maintained. Block molding mainly by hydraulic press. mechanical to assist. vibrate and press to finish molding blocks. The comprehensive strength of finished blocks can reach 15 Mpa. compactness is high. impermeability and freeze resistance is better. and excellent capacity of sound insulation. heat insulation. insulation.external dimensions are precise. the blocks are more consistency with low waster rate.
It is mainly composed of pallet feeder. host machine. block conveyor. hydraulic station and PLC controller.
PLC controllerControl system include PLC control box. expand parts. touch screen human-computer interface. intermediate relay. exchange contactor and so on. all parts can work in manual or automatic type. For example. the press head up and down mold box working. material box working. vibrate. molding. demolding. pallet go and back all can control automaticlly. And can adjust the feeding times and vibration time.Control parts include indicator light. control button. programmable operation panel. Through control the electric component. can know the machine situation. it can transition between manual mode and automatic mode. When changing the technical parameter. or there’s problem about the machine. should cut down electric in time. make sure the machine and person safe.
Main technical parameters
Dimension
8300 x 1860 x 3000 mm
Rated Pressure
21 Mpa
Vibration Form
Platform Vibration
Pallet Size
950 x 900 mm
Molding Cycle
15-25s
Overall Power
46 KW
Vibration Frequency
2800-4500RPM
Support Equipment
Basic equipment for the simple production line- JS750 mixer
mixed raw material for the blocks production
Basic equipment for the simple production line- belt conveyor- 8m. transfer material from mixer to machine.
Basic equipment for the simple production line- Extra molds. there is one free hollow mold with the machine. extra mold will be paid according to your needs.
Basic equipment for the simple production line- Automatic stacker- two pallets at one time. 3-6 layers according to the block height.
common blocks samples
loading and delivery
