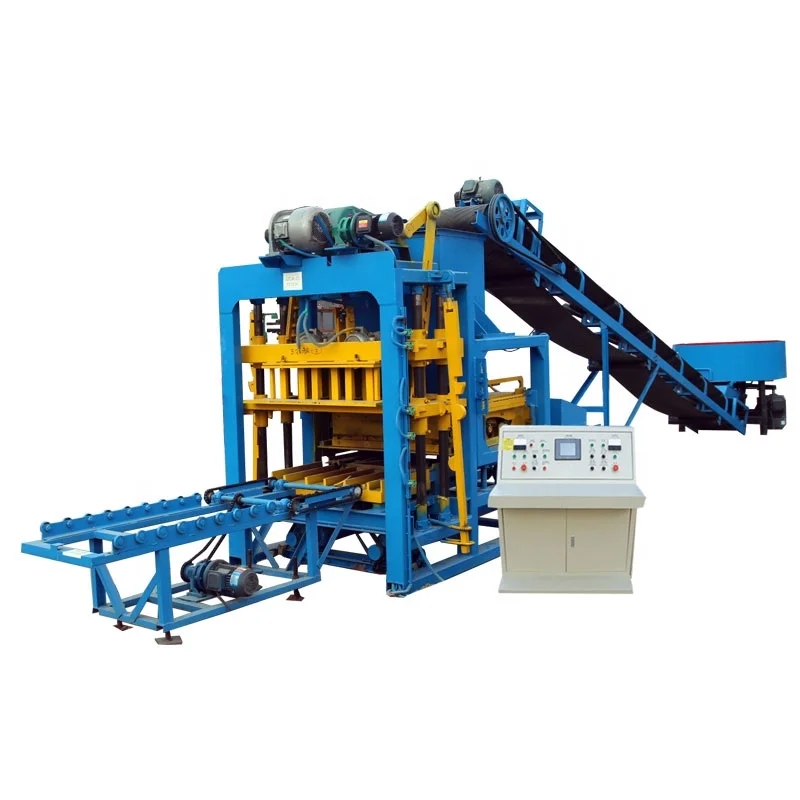

qt4 25 vibration motor brick block making machine 150Product Description QTJ4-25 Block Machine ParametersOverall size(L*W*H)6400*1500*2700mm Total mass3500kgCycle25S Capacity3600 Pcs/day(8h)Pallet size850*480mmOperating staff1-2 staffPower 17kwRated pressure21MpaApplied productsConcrete blocks. hollow/solid blocks. pavers. interlocking blocks . curbstone. colored pavers .etc.Raw materialCrushed stone. sand . cement. dust. and fly ash. gravel. slag. and other raw material . etc.Introduction of QTJ4-25 block mahcine1. QTJ4-25 block […]
| QTJ4-25 Block Machine Parameters | ||
| Overall size(L*W*H) | 6400*1500*2700mm | |
| Total mass | 3500kg | |
| Cycle | 25S | |
| Capacity | 3600 Pcs/day(8h) | |
| Pallet size | 850*480mm | |
| Operating staff | 1-2 staff | |
| Power | 17kw | |
| Rated pressure | 21Mpa | |
| Applied products | Concrete blocks. hollow/solid blocks. pavers. interlocking blocks . curbstone. colored pavers .etc. | |
| Raw material | Crushed stone. sand . cement. dust. and fly ash. gravel. slag. and other raw material . etc. | |
Introduction of QTJ4-25 block mahcine | ||
1. QTJ4-25 block machine is a kind of automatic product developed by our company newly with high density and high efficiency. 2. Best welding technology and the best steel in our country. 3. The blocks are High strength. the compactness of uniform. 4. Exchangeable moulds. 5. Competitive price and good quality. 6. Electro-mechanical integration. 7. Simple operation and high productivity. | ||
Productivity of QTJ4-25 hollow block machine | |||
| Size(L*W*H)mm | Pcs/mould | Pcs/hour | Pcs/day(8h) |
| 400*250*200mm | 3 | 360 | 2880 |
| 400*200*200mm | 4 | 450 | 3600 |
| 400*150*200mm | 5 | 600 | 4800 |
| 400*100*200mm | 7 | 840 | 6720 |
| 225*112.5*60mm | 12 | 960 | 7680 |
| Pictures of QTJ4-25 block making machine | |||
| Installation service | |||
| Machine installation and operation training will be supported by our engineers in buyer’s place about one week. The buyer should support following: | |||
| 1. USD50/day for our engineers (total 2) | |||
| 2. Accommodation and Round-trip tickets. | |||
| After sale service | |||
| During the 1st year. we will supply followings for free: | |||
| 1. spare parts of machine and equipment (except quick-wear parts) | |||
| 2. repair for equipment’s broken (design. work process and production) | |||
| FAQ | |||
| Q1: What is the Warranty for the machine? | |||
A1: For the machine.we have 1 years warranty(except the wearing part ).If any quality problems on our side occured in this period .we will take on the shipping cost and replacement. | |||
| Q2: What kinds of payment methods can be accept? | |||
| A2: Payment: T/T. Western Union. MoneyGram.PayPal; 30% deposits; 70% balance before delivery | |||
| Q3: Who will pay the delivery cost? | |||
A3: Because block machine need to be delivery by sea or road.so customers will in charge of the delivery cost. | |||
| Q4: what's the motor voltage? | |||
A4: Our local voltage is 380v. 3phase. 50HZ. motor voltage could be customized to fit your local voltage. | |||
| Q5: Do you have Operation Instruction Manual | |||
| A5: Yes.We will send the Operation Instruction Manual to you after you purchase the machine. | |||
