Automatic Hydraulic PLC Motor QTF3-20 High Efficiency Concrete Hollow Block Paving Making Machine Production Line Engine Gear Stationary block machine
Stationary block machine
Concrete Machinery

Automatic Hydraulic PLC Motor QTF3-20 High Efficiency Concrete Hollow Block Paving Making Machine Production Line Engine Gear

Products Description QTF3-20 Stationary Block MachineQTF3-20 block machine is designed according to domestic condition.and the customer’s advice.high productivity.high quality.strong durability.it can adopts to several kinds of environmental brick. interlock brick.color pavers.park grass brick.hollow brick. porous brick. standard brick and so on.The brick made by QTF 3-20 is high compression strength. standard dimension. appearance beautiful.QTF3-20 is […]

CE Certified
European Standards
Ships 15-30 Days
Fast Delivery
108+ Countries
Global Export
After-Sales Support
Training Included
Get Price & Quote WhatsApp Now
24h Response
Free Technical Consultation

Product Details

Products Description
QTF3-20 Stationary Block Machine
QTF3-20 block machine is designed according to domestic condition.and the customer’s advice.high productivity.high quality.strong durability.it can adopts to several kinds of environmental brick. interlock brick.color pavers.park grass brick.hollow brick. porous brick. standard brick and so on.The brick made by QTF 3-20 is high compression strength. standard dimension. appearance beautiful.

QTF3-20 is consist of host machine. material feeding machine.color material machine.pallet feeder.block conveyor. hydraulic station.electricity box and so on.It can make up a simple line with JQ350 mixer.8 meters conveyor belt.
QTF3-20 BLOCK MACHINE
QTF3-20 block making machine is made for color paver brick.grass brick.Slope protection brick and so on.it apply to hydraulic system to drive. no Contact proximity switch to monitoring.double layer(raw material and color surface material). operate automatically. Mechanic.electricity.hydraulic and high vibration work together.The main electrical component.and hydraulic component is imported from Germany or Chinese famous brand.Press with vibration.control the height and density..high exciting power.compact structure.easy operate.convenient maintenance.operate reliable.This machine equipped with one belt. it can make brick with one normal mixer.its a perfect environmental construction equipment.
Main technical parameters
Dimension
4000×3500×2300 mm
Total Mass
2870kg
Vibration Form
Platform Vibration
Total Power
17.5KW
Control Style
Semi-Automatic
Capacity
4320 pcs/day
Raw Material
Cement.Sand. Fly Ash.Coarse aggregate.Slag.etc

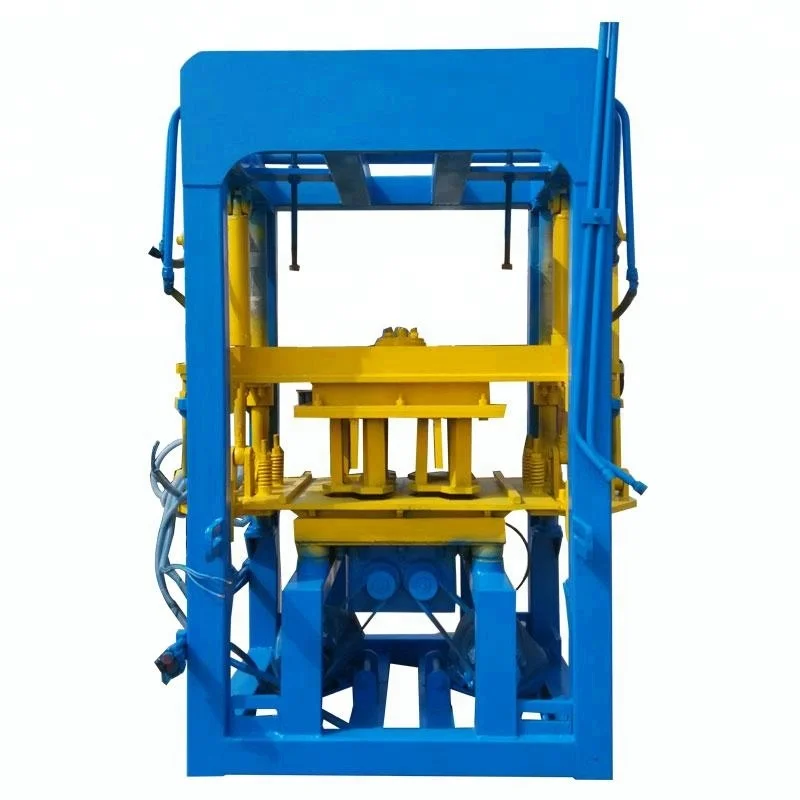

QTF3-20 Host Machine
Host machine is consist of host machine structure.up mold parts.down mold parts.Station shaft sleeve.vibration system.
(1)Host machine structureThe host machine structure is designed overall frame structure.use #12 U-bar welding together.compact structure. strong resistance to vibration.(2)Up mold parts: it is consist of platform.up mold structure.press foot and up mold cylinder.(3)Down mold partIt is consist of mold box.demold cylinder.
(4)Station shaft sleeve partsIt is consist of down sleeve components. up sleeve components.and standing shaft components.
(5)Vibration systemIt is consist of vibration motor.vibration table.vibration box. vibration rubber block and spring
Blocks Samples
