QTJ4-24 Cement Hollow Blocks Industry Brick Paver Making Machinery Block Making Machine Semi Automatic Pakistan Products 1000 High quality block machine
High quality block machine
Concrete Machinery

QTJ4-24 Cement Hollow Blocks Industry Brick Paver Making Machinery Block Making Machine Semi Automatic Pakistan Products 1000

Installation Instructions QTJ4-24 BLOCK MAKING MACHINEThis machine can composition simple production line with J350 Mixer and 6m Belt conveyor.QT4-24 type block machine is stationary small table vibration concrete block machine. it is the combination of mechanical and manual work to complete the various operations. simplicity of operator. reliable. facilitate maintenance.Block production adopts table vibration feeding […]

CE Certified
European Standards
Ships 15-30 Days
Fast Delivery
108+ Countries
Global Export
After-Sales Support
Training Included
Get Price & Quote WhatsApp Now
24h Response
Free Technical Consultation

Product Details

Installation Instructions

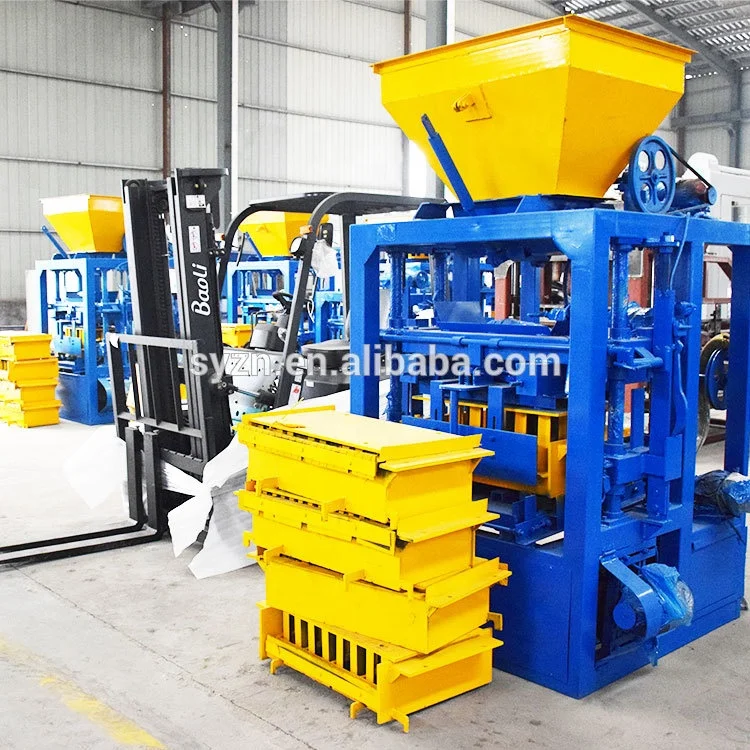

QTJ4-24 BLOCK MAKING MACHINE
This machine can composition simple production line with J350 Mixer and 6m Belt conveyor.QT4-24 type block machine is stationary small table vibration concrete block machine. it is the combination of mechanical and manual work to complete the various operations. simplicity of operator. reliable. facilitate maintenance.Block production adopts table vibration feeding material .fluctuation vibration molding. block forming speed. good compactness. high strength. This equipment is manual feeding and have two kinds of feed way.Mould lifting. block forming in place. Upper and lower vibrator start with the completion of the electrical control and mechanical parts interworking .devices running precisely. reduce the faulty operation damage.

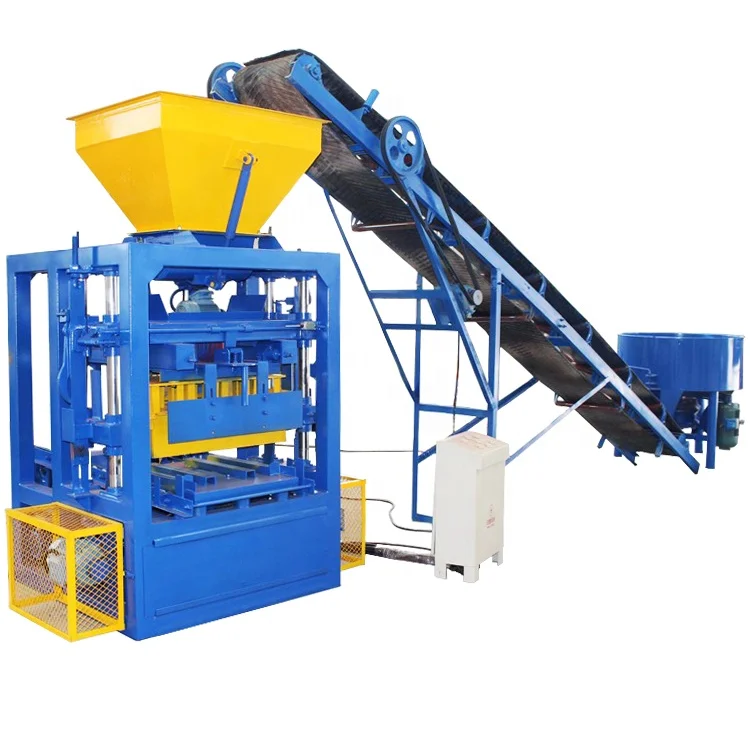

QTJ4-24 SEMI AUTOMATIC BLOCK MAKING MACHINE
1.Host machineFirst. put the main machine on the precast concrete ground. after putting. make main machine level and alignment. the vibration platform’s four angles as the reference. requirement roughness≤1mm. finished that put the big hopper on the main machine.2.Conveyor belt Install the 6m conveyor or 8m conveyor( no digging absolutely). the way of installation conveyor has two ways. One is required the center of conveyor on straight line with main machine center. the top part of conveyor stretch into the big hopper opening about one-third. Another installation of conveyor required the center of conveyor is vertical with main machine center. at the same time the center of conveyor on straight line with small hopper center. 3.MixerMixer usually use vertical JQ350 or JQ500. required the mixer’s discharge hole aims to conveyor. make sure the material from mixer out can alight on the conveyor. Bolting the motor of mixer on the frame of mixer. adjusted the parallelism of motor’s vee belt pulley can according to the parallelism of mixer’s vee belt pulley. check the tightness of motor’s vee belt pulley. use hand press the belt pulley 2cm. that is ok. Finished adjustment. fastening bolt.( Put 10kgs 35-40# machine lubrication into the reducer of JQ350. put 15kgs 35-40# machine lubrication into the reducer of JQ500 ). 4. Oil partFinished installation. check the reducer. shaft sleeve. vibration box and every part which need to lubricate. add the lubrication oil.5. Setting date of electrical equipment.Finished installation of electric control cabinet. lead the power into the main machine distribution box. mixer and conveyor. put the knife switch neighbour side with the mixer. convenient to operation.(requirement the general power has leakage protection circuit broker ).General power uses wire specification: 3x16mm.Main machine uses wire specification: 3x6mm.Mixer uses wire specification: 3x4mm.Conveyor uses wire specification: 3×2.5mm.
Main technical parameters
Dimension
3600mm×1700mm×2560mm
Total Mass
3.5T
Main Machine Power
11.95kw
Pallet Size
900mm×450mm
Molding Cycle
24-26s
Molding
400mm*200mm*200mm 4pcs/mold 390mm*240mm*190mm 3pcs/mold 390mm×120mm×190mm 6pcs/mold 240mm×115mm×53mm 21pcs/mold
Blocks Samples
Company Profile

company simple introduction

Shandong shiyue intelligent machinery CO.. LTD is the leading supplier of concrete machinery and plant .We have two factory areas .covering more than 200.000 square meter areas .more than 50000 square meter workshops . more than 300 rich experienced engineers and technical persons.Our machine are well applied to more than 108 countries and areas. We customize different kinds of machine according to customers' local requests rather than just promote localized products to overseas clients from all over the world.We firmly believe"quality creates value. profession accomplishes success".
Packaging And delivery
Customer Visiting and customer working site
FAQ
1> Is this block machine suitable for us to use?Answer:Could you pls tell us the investment plan?the capacity you want?what kind of bricks do you want to make?Then the most suitable model will be recommended to you..2>Which industry did this block machine usually be used in?Answer: Hollow Block.Muticelullar bricks.Paving bricks.Standard bricks.etc3>How to use the block machine?Answer: We will send the operating manual to you or arrange engineer fly to your site for installation and training after you purchase the machine.4>How about the after sale service of block machine?Answer: 1 year guarantee for the whole machine (without the spare parts).good machine no need after sale service.we keep the superior quality machine for you. 5>what's your payment termour common payment is 30% deposit by T/T before arrange the machine production.70% balance before the delivery.if other payment term.we can negotiation.
