Home Products Stationary block machine QT7-15 Automatic PLC Controlled Concrete Hollow Paver Brick Block Making Machine with Engine and Gear High Efficiency
QT7-15 Automatic PLC Controlled Concrete Hollow Paver Brick Block Making Machine with Engine and Gear High Efficiency Stationary block machine
Stationary block machine
Concrete Machinery

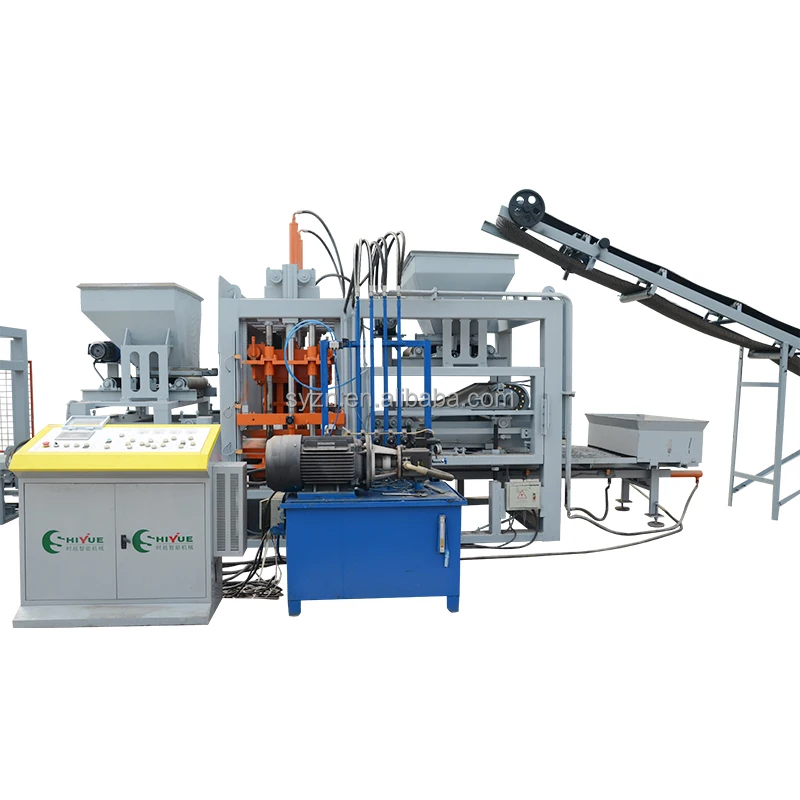

QT7-15 Automatic PLC Controlled Concrete Hollow Paver Brick Block Making Machine with Engine and Gear High Efficiency

Product Description 1) The motor for the host machine is Germany SIEMENS brand or CE standard brand 2) Control PLC: we select the original Siemens PLC combine with an independently develop machine control program. assure stable and high-efficiency working status 3) The Travel switch will use the France Schneider brand and Japan Omron 4) Mould: […]

CE Certified
European Standards
Ships 15-30 Days
Fast Delivery
108+ Countries
Global Export
After-Sales Support
Training Included
Get Price & Quote WhatsApp Now
24h Response
Free Technical Consultation

Product Details

Product Description


1) The motor for the host machine is Germany SIEMENS brand or CE standard brand 2) Control PLC: we select the original Siemens PLC combine with an independently develop machine control program. assure stable and high-efficiency working status 3) The Travel switch will use the France Schneider brand and Japan Omron 4) Mould: newest heat treatment device and carburizing treatment will assure a longer mold life span and ensure mold strength reaches 54-58 HRC so that the mold can be used more than 100 thousand times.5)Material and welding: all materials and spare parts are selected according to international CE standards. Carbon dioxide protection welding will assure the whole line stable running.
Specification and Production
QT7-15 Automatic Block Making Machine Technical Parameters


1
Dimension of host machine
3200x2300x2750MM
2
Weight of host machine
6 Tons
3
Molding area
1150*700mm
4
Workshop area
200?O
5
Host machine power
45KW
6
Vibration force
100KN
7
Pallet size
1150*700*25mm
8
Voltage
220/380/415/440V(Customized)
9
Molding period
15 Seconds
10
Vibration method
Hydraulic+Platform Vibration
11
Vibration frequency
2800- 4500 Times/Minute
common blocks capacity and samples
Grouped Equipments
This line includes one QT7-15 BrickMachine with Pallet feeder and brick receiver. Hydraulic station.PLD1200 batching Machine .JS500 Mixer.Conveyor belt.hydraulic trolley If you produce color pavers. just add color feeding system.
PLD1200 Batching Machine
1.Weigh-batching hopper capacity:1200L2.Storage hopper capacity:4*2.5m33.Theoretical Productivity:56m3/h4.Ingredient precision:±2%5.Min Weight :3000KGS6.Batching species: 37.Height of Adding Material: 2.8mm8.Belt speed :1.25m/s9.Weight :4500kgs10.Dimensions:12000×2200×2500mm

JS500 Concrete Mixer
1.Charging volume:800L2.Discharging volume:500L3.Production capacity:25m3/h4.Electric motor power for mixing:18.5kw5.Electric motor power for windlass:5.5kw6.Water pump power:0.75kw7.Maximum grain sizes of aggregate:60mm8.Weight of the whole machine:2800Kg9.Overall dimension(L*W*H):4490*3030*5280mm




Block Machine Stacker

(1)Model: SY-4 stacker
(2)Power: 3KW
(3)Mobile pallet stack
(4)Suitable for hollow block and pavers (5)Weight: 600KGS
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine.
*Training how to use the machine.
* Engineers available to service machinery overseas.

Packing & Delivery


Steel wire and strap fixing


The normal package is nude or with plastic film. or pack it according to customers special request.
customer working site
