Home Products Automatic block machine QT5-15 Automatic High Quality Hydraulic Pressure Hollow Porous Curbstone Paver Stone Block Making Machine with PLC Controller
QT5-15 Automatic High Quality Hydraulic Pressure Hollow Porous Curbstone Paver Stone Block Making Machine with PLC Controller Automatic block machine
Automatic block machine
Concrete Machinery

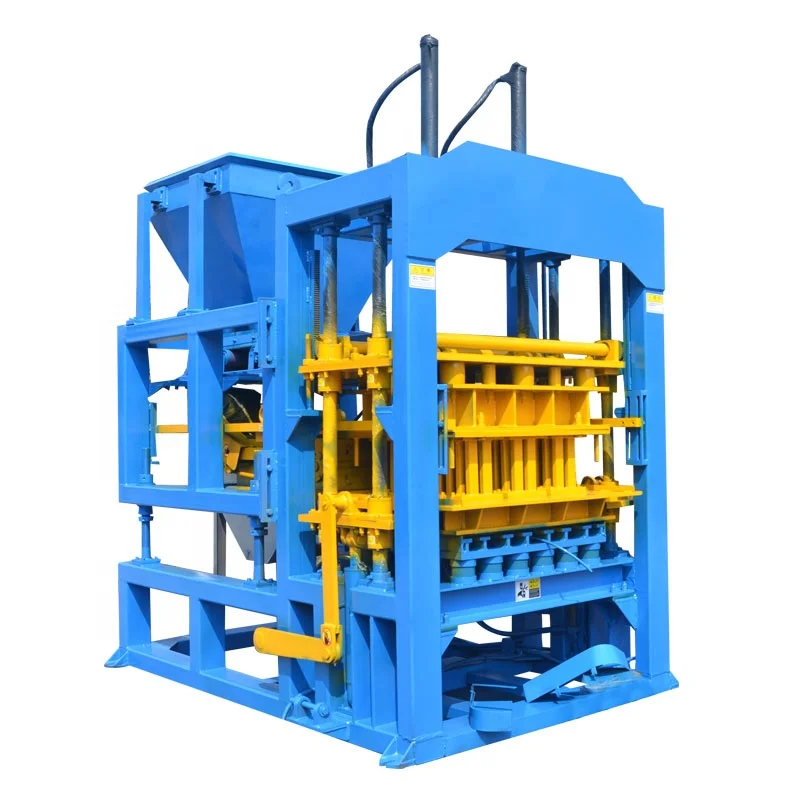

QT5-15 Automatic High Quality Hydraulic Pressure Hollow Porous Curbstone Paver Stone Block Making Machine with PLC Controller

Products Description 1. QT5-15 hydraulic automatic concrete hollow block machine is a compact machine with electric and hydraulic system. each procedure action locks with each other to guarantee the machine operate safely. easily and dependability. 2. Through mold-releasing oil cyclinder. the mold box was locked into the vibration table with high rigidity to reach the […]

CE Certified
European Standards
Ships 15-30 Days
Fast Delivery
108+ Countries
Global Export
After-Sales Support
Training Included
Get Price & Quote WhatsApp Now
24h Response
Free Technical Consultation

Product Details

Products Description
1. QT5-15 hydraulic automatic concrete hollow block machine is a compact machine with electric and hydraulic system. each procedure action locks with each other to guarantee the machine operate safely. easily and dependability.
2. Through mold-releasing oil cyclinder. the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration. so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density.
especially suitable to produce the standard blocks. which can be piled up immediately so that the pallet investment can be saved directly.
3. The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash. cement. sand. stone. slag. and so on. It can severs several purposes and produce various specification standard bricks. concrete blocks. porous blocks. paving bricks etc.
common blocks theoretical Capacity and common blocks samples
QT5-15 parameters
Machine power
26.5kw
Molding cycle
15-20 seconds
Hydraulic pressure
16-21 Mpa
Machine weigh
6000KGS
Overall size
7400*1950*2800mm
Voltage
According to your local voltage
Main Vibration Form
Platform Vibration
Pallet Size
1100*550mm
Vibration Force
45KN
Applied Products
Concrete blocks. hollow/solid blocks. pavers. interlocking blocks . curbstone. colored pavers .etc.
Raw Material
Crushed stone. sand . cement. dust. and fly ash. gravel. slag. and other raw material etc.
Theoretical productivity
Items
Block size
Pcs/mould
Cycle molding
Pcs/day
Hollow Block
400*200*200mm
5
15-20s
7200-9600
Porous Block
240*115*90mm
16
15-20s
23000-28800
Standard Block
240*115*53mm
32
15-17s
61440-70400
Our Advantages
Company Profile
Customer Visiting and customer working site

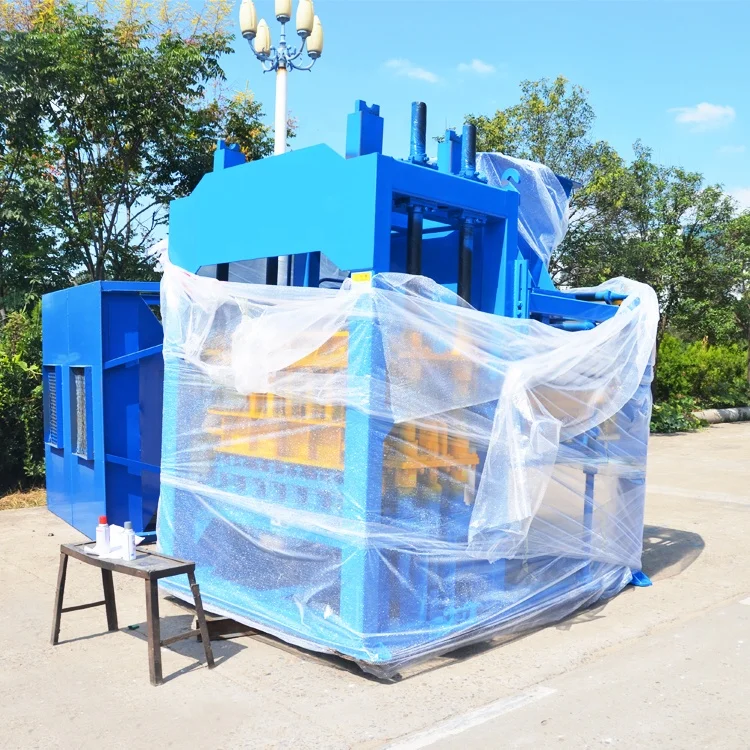

Packaging And Shipping
