Home Products Clay interlocking brick Fully Automatic LY5-10 Hydraulic Interlocking Clay Brick Making Machine Lowest Price
Fully Automatic LY5-10 Hydraulic Interlocking Clay Brick Making Machine Lowest Price Clay interlocking brick
Clay interlocking brick
Concrete Machinery

Fully Automatic LY5-10 Hydraulic Interlocking Clay Brick Making Machine Lowest Price

Products Description LY5-10 Automatic Interlocking Clay Brick Making MachineAssembly of machines1、Put together the brick making machine in the style of the above picture.2、Connect the main circuit to the electric box according to the wiring diagram.3、Connect the crusher. screen. mixer. conveyor to the small control box.Advantage:* 1. PLC controlled.which can be easily operated by only one […]

CE Certified
European Standards
Ships 15-30 Days
Fast Delivery
108+ Countries
Global Export
After-Sales Support
Training Included
Get Price & Quote WhatsApp Now
24h Response
Free Technical Consultation

Product Details

Products Description
LY5-10 Automatic Interlocking Clay Brick Making Machine
Assembly of machines1、Put together the brick making machine in the style of the above picture.2、Connect the main circuit to the electric box according to the wiring diagram.3、Connect the crusher. screen. mixer. conveyor to the small control box.
Advantage:
* 1. PLC controlled.which can be easily operated by only one person
* 2.One or Two brick(according to the mold) would be made in less than 10 seconds.
* 3.By adjusting the screws.brick height can be changed.
* 4. Mould can be changed according to customer’s requirements.
* 5.High productivity.
* 6.Hydraulic to guarantee the brick's density and strength.
* 7. 14400pcs bricks a day.
Machine
LY5-10 Clay Brick Machine with PLC
Dimension
2260x1500x2380MM
Total Mass
2200 kgs
Power
15KW
Molding Cycle
10 s
Related Equipment
JQ500 Concrete Mixer. 6M Conveyor Belt. Soil Crusher. Soil Screening machine.Belt Conveyor 4m. Output conveyor
Raw Material
Clay.soil .cement or other construction dregs

Preparation before commissioning

1. add lubricating oil to each friction part2. add 70L anti-wear hydraulic oil to the hydraulic tank3. add the 15KG oil to the gearbox of mixer4.open the power control switch inside the electric box

Automatic Brick Making Machine Handling Precautions

1. First start the mixer. and then add raw materials to the mixer. first mix the clay and cement fully. then add water. water do not add too much. the state of the raw material is very scattered. grab a group with hands 2. In the process of running the machine. in case of emergency. press the Urgent stop button to stop the work of the brick making machine3. Clean up the unnecessary materials on the machine every day before work4. The hydraulic oil should be filtered or replaced according to the actual situation for 3-5 months5. Always check the fasteners and lubrication parts. do a good job of maintenance

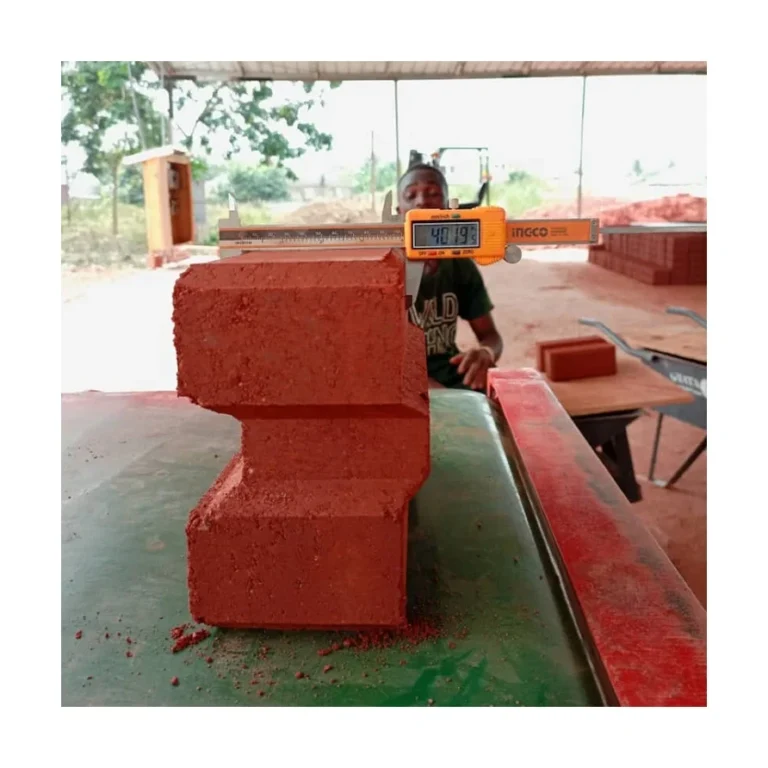

Blocks Samples
loading and delivery
FAQ
Company Profile
