Product Details

Products Description

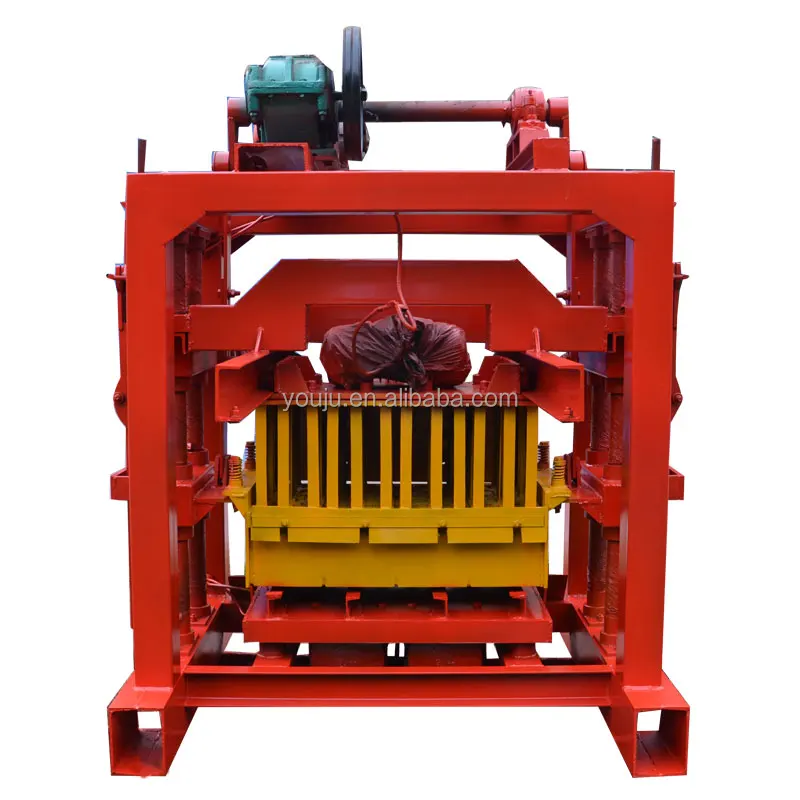

QTJ4-40 MANUAL CONCRETE BLOCK MAKING MACHINE
QTJ4-40 type concrete block making machine is made up of the machine frame. lifting system. vibration system. mould assembly. electrical control components etc.
The QTJ4-40 stationary type small platform vibration concrete block making machine adopts mechanical and electric combination type to make all kinds of action. It is easy to operate . work and maintain.
Block production adopts table vibration feeding material .fluctuation vibration molding.block forming speed. good compactness. high strength. Mold lifting. block forming in place. Upper and lower vibrator start with the completion of the electrical control and mechanical parts interworking .devices running precisely. reduce the faulty operation damage.
Product  Introduction
Description of Goods
QTJ4-40 samll manual Block machine
Product capacity
400x200x200mm??5pcs/mould ??2400pcs/hour ??19200pcs/day
Rated Power
10.4KW
Overall Size
1350x1460x1800mm
Molding Cycle (S)
40s
Pallet Size
850*450*20mm
Vibration Frequency
2800 r/min
Total Mass (KG)
1200KG
configuration
host machine 1set??Block mould 1set??JQ350 mixer
QTJ4-40 HOLLOW BLOCK MACHINE
Material needed before installation
1??Electric leakage protector(three-phase four-wire) 100A×1piece 2??General power line specifications (Chinese standard) :External use 16 square. the host with 10 square to introduce switch. mixer with 6 square.3??35 # gear oil 10 kg (For the mixer)4??Engine oil 2 kg (host machine lubrication)5??Tool: spanner which the head lived. open spanner 14-17. 19-22. 24-27. 30-36. the plum blossom screwdriver. wire clamp. fur brush(40mm).
QTJ4-40 BLOCK MACHINE
EQUIPMENT INSTALLATION
Requirements(1)The assembling place should be flat. foundation should be solid. have enough place for storing raw material and putting finished products. (2) Power source. water supply and raw material need to do well necessary rain and moisture-proof measures.
Installation(1) Put the main machine in the precast cement ground. after putting down. make level and alignment. the vibration platform with four angle as a benchmark. unevenness ≤1°. (2) To Assemble the mixer. usually use the vertical type 350.(3) The electric switch of host machine and mixer assembled near to operator. in order to convenient to operate. Switch on the power. adjust the motor steering. If the down vibrator appears vibration power small. can change the vibrator steering and exchange the two phase power line’ wire line. that can reach good vibration power.(4) After assembled. check the 250 reducer(have been added the engine oil before leave factory). the shaft sleeve and other need to lubricate. all fill the lubrication oil.In the mixer should fill 10kgs 35# engine oil or gear oil. then assemble the motor on mixer. be careful the parallel and firmness of triangle belt. Check every parts of screw whether solid. if loose. tightening in time.
Block Samples
Packing & Delivery
Company Profile

SHI Yue CO. LTD


We win the good reputation for reliable quality. competitive price and excellent after-sales service. Our export revenue increases constantly every year. and our products have already entered nearly 100 countries. We sincerely hope to cooperate.develop together and build a good future with you.
