SHIYUE Siemens Motor QT8-15 Automatic Cement Interlocking Block Making Machine Brick Maker Sales High quality block machine
High quality block machine
Concrete Machinery

SHIYUE Siemens Motor QT8-15 Automatic Cement Interlocking Block Making Machine Brick Maker Sales

Product Description Introduction1) The motor for the host machine is Germany SIEMENS brand or CE standard brand 2) Control PLC: we select the original Siemens PLC combine with an independently develop machine control program. assure stable and high-efficiency working status 3) The Travel switch will use the France Schneider brand and Japan Omron 4) Mould: […]

CE Certified
European Standards
Ships 15-30 Days
Fast Delivery
108+ Countries
Global Export
After-Sales Support
Training Included
Get Price & Quote WhatsApp Now
24h Response
Free Technical Consultation

Product Details

Product Description

Introduction
1) The motor for the host machine is Germany SIEMENS brand or CE standard brand 2) Control PLC: we select the original Siemens PLC combine with an independently develop machine control program. assure stable and high-efficiency working status 3) The Travel switch will use the France Schneider brand and Japan Omron 4) Mould: newest heat treatment device and carburizing treatment will assure a longer mold life span and ensure mold strength reaches 54-58 HRC so that the mold can be used more than 100 thousand times.5)Material and welding: all materials and spare parts are selected according to international CE standards. Carbon dioxide protection welding will assure the whole line stable running.
Our Advantages

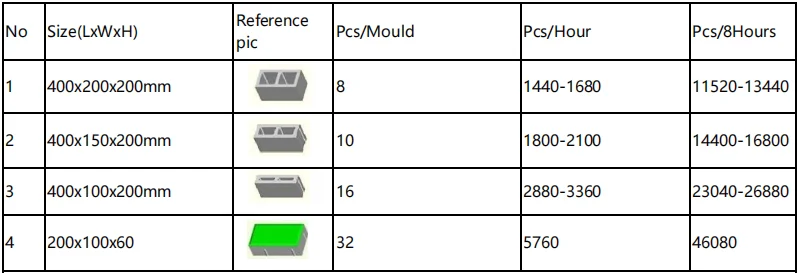

Specification and Production
QT8-15 Automatic Block Making Machine Technical Parameters


1
Dimension of host machine
5870*2220*2850mm
2
Weight of host machine
10 Tons
3
Molding area
950*900mm
4
Workshop area
200??/DIV>
5
Host machine power
47KW
6
Vibration force
100KN
7
Pallet size
950*900*25mm
8
Voltage
220/380/415/440V(Customized)
9
Molding period
15 Seconds
10
Vibration method
Hydraulic+Platform Vibration
11
Vibration frequency
2800- 4500 Times/Minute

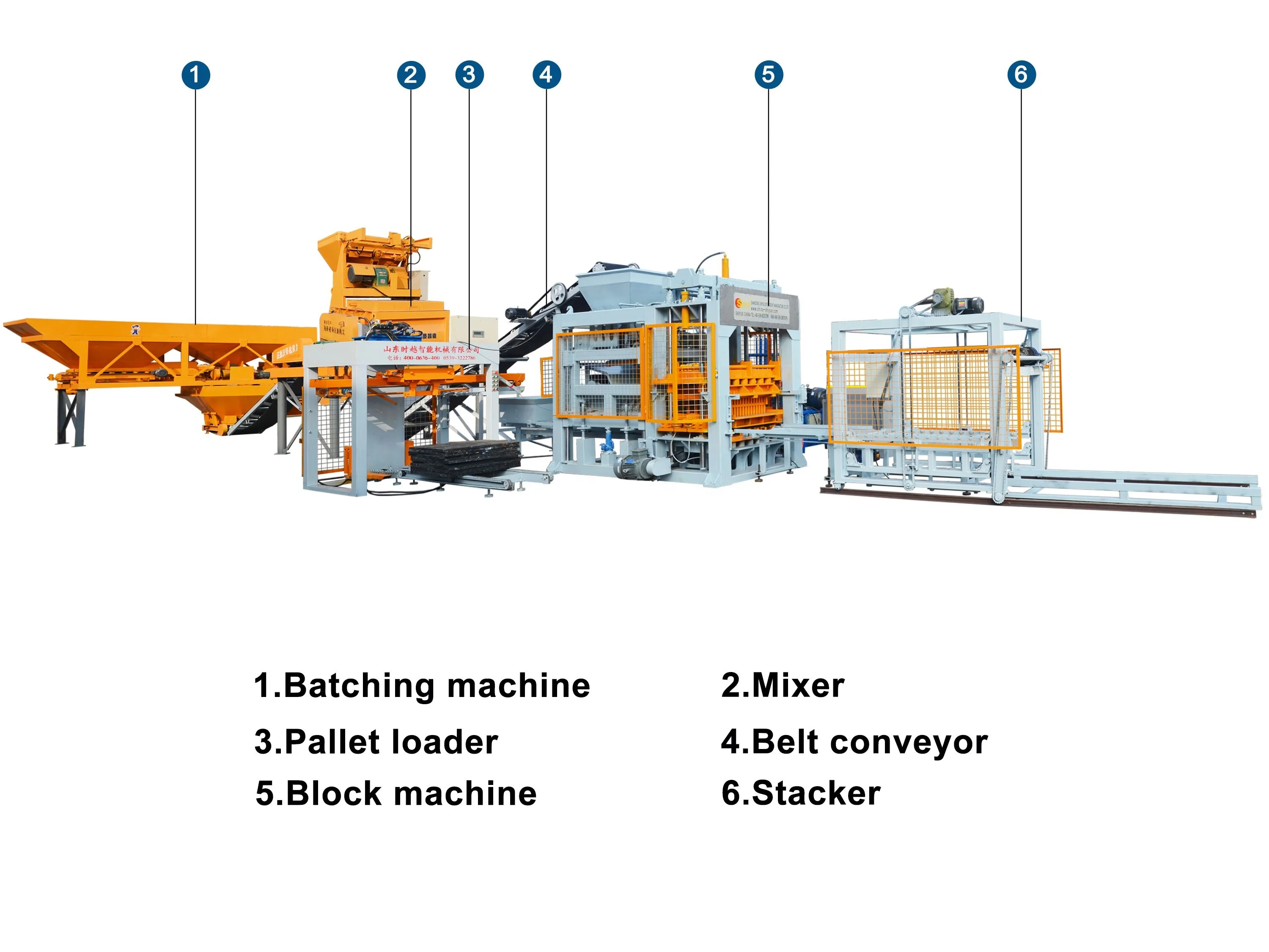

Grouped Equipments
This line includes one QT6-15 BrickMachine with Pallet feeder and brick receiver. Hydraulic station.PLD1200 batching Machine .JS500 Mixer.Conveyor belt.hydraulic trolley If you produce color pavers. just add color feeding system.
PLD1200 Batching Machine
1.Weigh-batching hopper capacity:1200L2.Storage hopper capacity:4*2.5m33.Theoretical Productivity:56m3/h4.Ingredient precision:±2%5.Min Weight :3000KGS6.Batching species: 37.Height of Adding Material: 2.8mm8.Belt speed :1.25m/s9.Weight :4500kgs10.Dimensions:12000×2200×2500mm

JS750 Concrete Mixer
1.Charging volume:1200L2.Discharging volume:750L3.Production capacity:35m3/h4.Electric motor power for mixing:30kw5.Electric motor power for windlass:7.5kw6.Water pump power:1.1kw7.Maximum grain sizes of aggregate:60mm8.Weight of the whole machine:3500Kg9.Overall dimension(L*W*H):4490*3030*5280mm




Block Machine Stacker

Stacker
(1)Model: SY-8 stacker
(2)Power: 3KW
(3)Mobile pallet stack
(4)Suitable for hollow block and pavers (5)Weight: 600KGS
Block and Mold Sample
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine.
*Training how to use the machine.
* Engineers available to service machinery overseas.

Packing & Delivery


Steel wire and strap fixing


The normal package is nude or with plastic film. or pack it according to customers special request.
Company Profile
FAQ
1> Is this block machine suitable for us to use?
Answer:Could you please tell us what kind of bricks do you want to make? And the capacity you want? Let us check if it can meet your request.
2>Which industry did this block machine usually be used in?
Answer: Interlocking bricks. Hollow bricks. Paving bricks.Solid bricks.etc
3>How to use the block machine?
Answer: We will send the operating manual to you after you purchase the machine. for bigger machine. we can offer engineer fly to your side for installation and training your workers.
4>How about the after sale service of block machine?
Answer: 1 year guarantee for the whole machine (without the spare parts).
5>what's your payment term
our common payment is 30% deposit by T/T before arrange the machine production.70% balance before the delivery.if other payment term.we can negotiation.
