High quality block machine

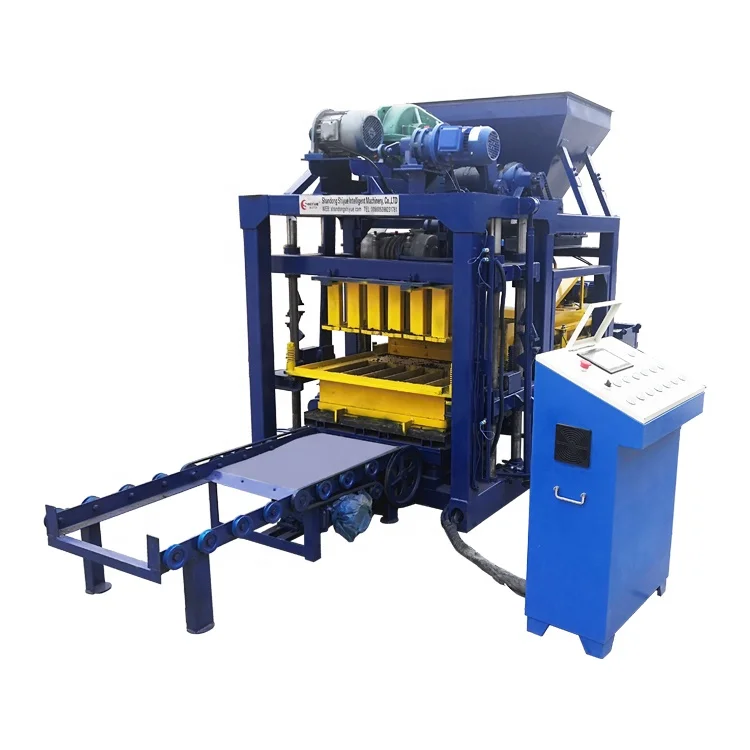

Products Description QTJ4-40 concrete hollow brick making machine 1.It is a kind of semi-automatic machine based on the original medium and small-scale block machine.2.It adopts top die push and pull and automatic scraper.which is smple to operate as well as the large-scale equipment.3.It also makes the mould and the squeeze head works more precise.4.The bed […]
Technique Parameters | ||
Machine power | 9.5kw | |
Molding cycle | 40s | |
Capacity | 2000-2500pcs/8hours | |
Raw material | concrete. sand.cement. fly ash. lime. gypsum.etc. | |
Machine weigh | 1T | |
Overall size | 1350*1460*1800mm | |
Pallet size | 850*450mm | |
Voltage | According to your local voltage | |
Theoretical productivity | ||||||||
No. | Block size | Pcs/mould | Pcs/hour | Pcs/day | ||||
1 | 400*200*200mm | 4 | 360 | 2800 | ||||
2 | 400*150*200mm | 5 | 450 | 3600 | ||||
3 | 225*112.5*60mm | 9 | 800 | 6400 | ||||
Fill in your requirements and our export manager will respond within 24 hours with pricing, specs and a customized solution.
