Home Products High quality block machine QTJ4-35 Block Making Machine Fully Production Line Semi Automatic Hydraulic Press Cement Paver Brick Making Machinery
QTJ4-35 Block Making Machine Fully Production Line Semi Automatic Hydraulic Press Cement Paver Brick Making Machinery High quality block machine
High quality block machine
Concrete Machinery

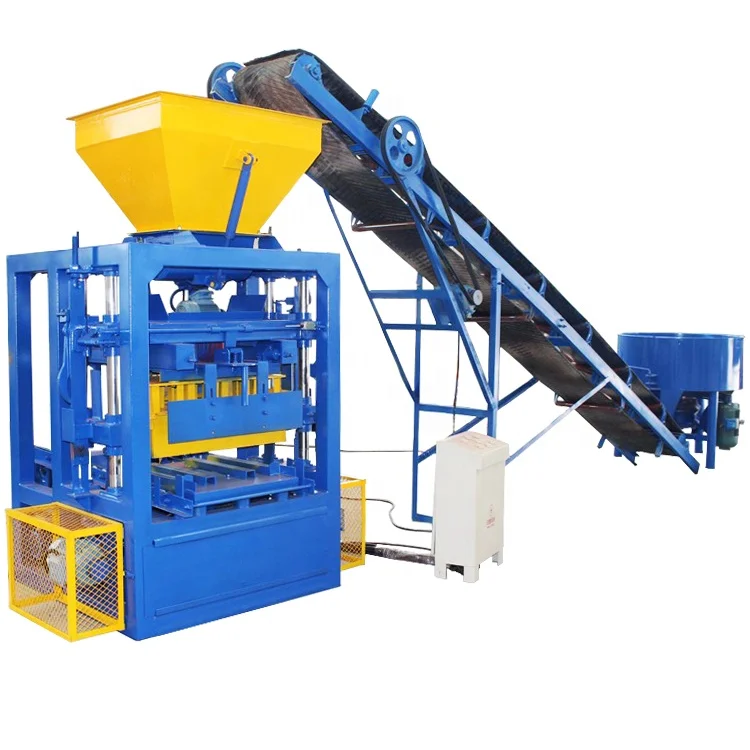

QTJ4-35 Block Making Machine Fully Production Line Semi Automatic Hydraulic Press Cement Paver Brick Making Machinery

Product Description QTJ4-35concrete fly ash brick molding machinebusiness ideas with small investment 2024 introductionFor QTJ4-25 machine maybe you have following question?Q1: What machines do I need for this production?A1: 1.the mixer is used to mix the material to be average 2.the conveyor is for deliver the material to the machine 3.the host machine for the […]

CE Certified
European Standards
Ships 15-30 Days
Fast Delivery
108+ Countries
Global Export
After-Sales Support
Training Included
Get Price & Quote WhatsApp Now
24h Response
Free Technical Consultation

Product Details

Product Description

QTJ4-35concrete fly ash brick molding machinebusiness ideas with small investment 2024 introduction


For QTJ4-25 machine maybe you have following question?
Q1: What machines do I need for this production?
A1: 1.the mixer is used to mix the material to be average 2.the conveyor is for deliver the material to the machine 3.the host machine for the machine forming.Place the bricks on the board. stack them up. and move them to a dry place with a trolley 5.trolley and tools is free 6.you need choose the mould you want to do 7.pallet you can choose for loading and place the formed brick and place them here for drying. I suggest buy 300-500 pieces.

Q2: What bricks can be produced?
A2: Hollow.solid.paver in all size.Normally 8 inch.6 inch.5 inch.4 inch.If you need other size please contact me.

Q3: What is a pallet? What is its use in the production process?
A3: The pallet is actually used to place the newly made bricks during the brick production process. It is convenient for us to move the bricks to a dry and ventilated place before the bricks are completely fixed and wait for the bricks to dry and form.I will show you the picture and the video.

Q4:What is the machine output?
A4: Hollow 400x200x200 mm.4 pcs/mould .960pcs/hour.7680pcs/day.If you want to know other size.please send message to me.

Q5: Is there anything I can do without buying?
A5: 1)Mixer if you have.you can not buy.2) pallet is an optional part.which material is fiber glass.If you have in your local
market.some may do the wooden pallet is also can be used.It up to you.

1.It is a kind of semi-automatic machine based on the original medium and small-scale block machine.
2.It also makes the mould and the squeeze head works more precise.
3.The bed mould vertical vibration and upper mould compression vibration improving the efficiency greatly
4.It manufactures blocks with more average density and higher strength because of the above four reason.

QTJ4-35 block making machine can make the paver. solid.hollow curbstone only need change the mould. It is easy to operate.Itadopts the hydraulic station so the pressure is high and make machine runs stable..It can protect machine then will make machine's use life much longer.Always ship to Jamaica. including Saint Thomas.Kingston. Saint Catherine. Manchester. Clarendon. West more land and so on. Machines are working very well with high production efficiency. block machine has become one of most popular block machine brand in Jamaica Welcome your inquiry. Shiyue factory will help you to achieve success in block business
Specification
Product name
QTJ4-35concrete fly ash brick molding machinebusiness ideas with small investment 2024
Overal dimension
1350*1460*1800mm
MOLDING CYCLE
35s
Vibration frequency
2800 r/min
Exciting power
30KN
Power
11.15KW
Mixer
JQ350
Pallet size
850*450*20mm
Total weight
1500KG
Applied products
Concrete blocks.hollow block( 8 inch.6 inch).solid brick
Raw materials
Crushes stones.sand.cement.dust.fly ash and so on.
Production capacity
Type
Size(mm)
Pcs/Mould
Pcs/Hr
Pcs/8hr
Hollow block
400*200*200
4
408
3264
Hollow block
400*150*200
5
510
4080
Solid brick
240*115*53
18
2100
17000
Details
Block Samples
What kind of blocks can this machine make?
QTJ4-35 mainly can make hollow block and solid brick for normal size.kindly send your block sample picture or drawing for our engineer confirmation.
Company Profile
About us
Shandong shiyue intelligent machinery CO..LTD is the leading supplier of concrete machinery and plant .We have two factory areas .covering more than 200.000 square meter areas .more than 50000 square meter workshops .more than 300 rich experienced engineers and technical persons.Our machine are well applied to more than 108 countries and areas. We customize different kinds of machine according to customers' local requests rather than just promote localized products to overseasclients from all over the world.We firmly believe"quality creates value. profession accomplishes success".
Packing & Delivery
Nude packing in a 20GP.and also load about 500 pcs of pallets for your needs.
