Product Details

Products Description

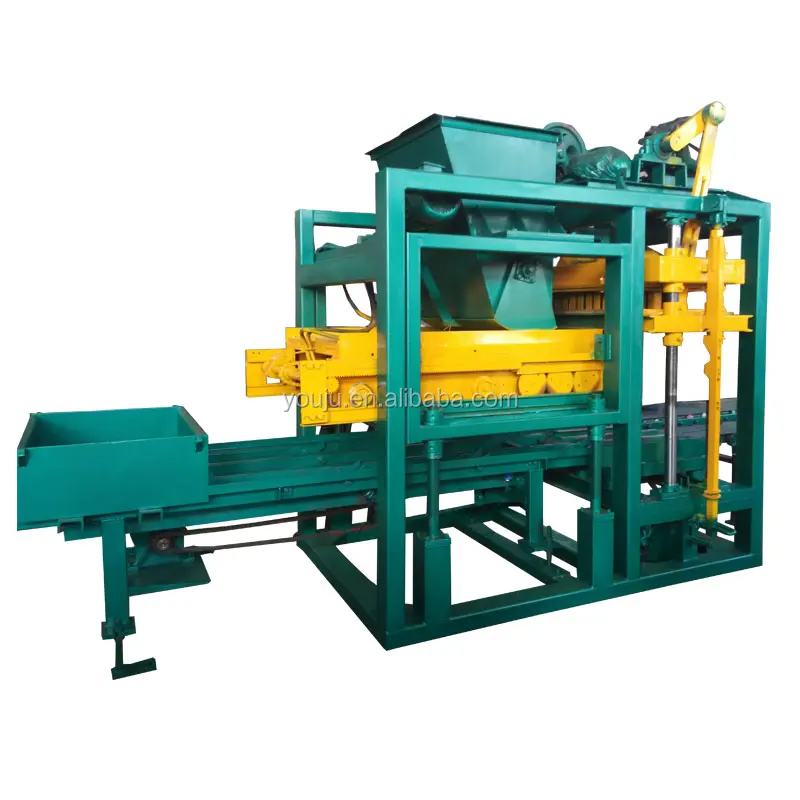

QTJ4-25 motor concrete block making machine introduction

For QTJ4-25 machine maybe you have following question?
Q1: What machines do I need for this production?
A1: 1.the mixer is used to mix the material to be average 2.the conveyor is for deliver the material to the machine 3.the host machine for the machine forming.Place the bricks on the board. stack them up. and move them to a dry place with a trolley 5.trolley and tools is free 6.you need choose the mould you want to do 7.pallet you can choose for loading and place the formed brick and place them here for drying. I suggest buy 300-500 pieces.

Q2: What bricks can be produced?
A2: Hollow.solid.paver in all size.Normally 8 inch.6 inch.5 inch.4 inch.If you need other size please contact me.

Q3: What is a pallet? What is its use in the production process?
A3: The pallet is actually used to place the newly made bricks during the brick production process. It is convenient for us to move the bricks to a dry and ventilated place before the bricks are completely fixed and wait for the bricks to dry and form.I will show you the picture and the video.

Q4:What is the machine output?
A4: Hollow 400x200x200 mm.4 pcs/mould .960pcs/hour.7680pcs/day.If you want to know other size.please send message to me.

Q5: Is there anything I can do without buying?
A5: 1)Mixer if you have.you can not buy.2) pallet is an optional part.which material is fiber glass.If you have in your local
market.some may do the wooden pallet is also can be used.It up to you.

1.It is a kind of semi-automatic machine based on the original medium and small-scale block machine.
2.It also makes the mould and the squeeze head works more precise.
3.The bed mould vertical vibration and upper mould compression vibration improving the efficiency greatly
4.It manufactures blocks with more average density and higher strength because of the above four reason.

QTJ4-25 block making machine can make the paver. solid.hollow curbstone only need change the mould. It is easy to operate.It adopts the hydraulic station so the pressure is high and make machine runs stable..It can protect machine then will make machine's use life much longer.Always ship to Jamaica. including Saint Thomas.Kingston. Saint Catherine. Manchester. Clarendon. West more land and so on. Machines are working very well with high production efficiency. block machine has become one of most popular block machine brand in Jamaica Welcome your inquiry. Shiyue factory will help you to achieve success in block business
Product  Introduction
Description of Goods
QTJ4-25 motor concrete block making machine
Product capacity
400x200x200mm??4pcs/mould
Rated Power
17.9KW
Overall Size
6400*1500*2700mm
Molding Cycle (S)
25s
Pallet Size
850*550*20mm
Vibration Frequency
2800 r/min
Total Mass (KG)
2500KG
configuration
host machine 1set??Block mould 1set??JQ350 mixer
Exciting power
60KN
Block Samples

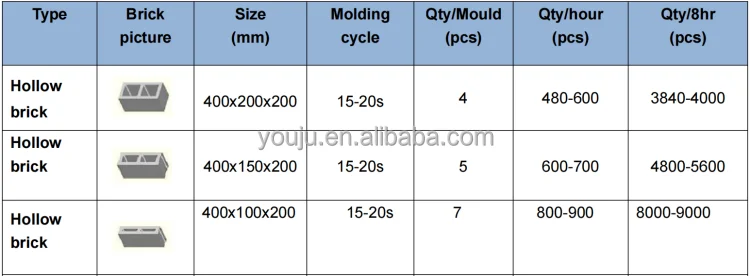

Production capacity

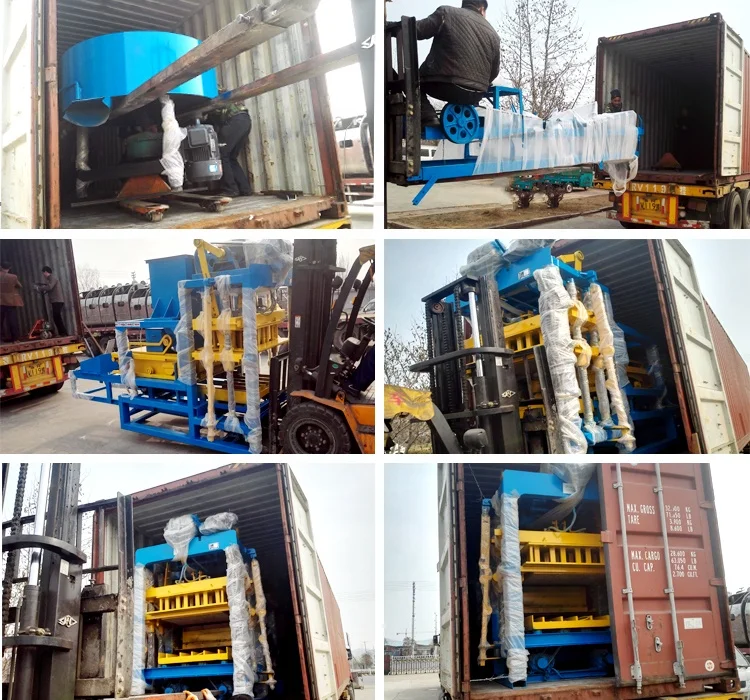

Packing & Delivery
