Home Products High quality block machine QT6-15 Big Block Making Machine Block Laying Machine
QT6-15 Big Block Making Machine Block Laying Machine High quality block machine
High quality block machine
Concrete Machinery

QT6-15 Big Block Making Machine Block Laying Machine

Main technical parameters Overall Dimension8200*1700*2950mmvibration frequency0-60HZVibration FormPlatform Vibrationmoulding modeload automatically.vibration mouldingPallet Size880*850mmMolding cycle15-20sOverall Power37KWVibration Force45KNTotal Mass7TDemolding methodHydraulicFactory Area1200m2 Products Description Characteristics 1This equipment is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient. easy-operated and easy-maintained. Block molding mainly by hydraulic. machinery as sideline. vibrate and press to finish molding blocks. The […]

CE Certified
European Standards
Ships 15-30 Days
Fast Delivery
108+ Countries
Global Export
After-Sales Support
Training Included
Get Price & Quote WhatsApp Now
24h Response
Free Technical Consultation

Product Details

Main technical parameters
Overall Dimension
8200*1700*2950mm
vibration frequency
0-60HZ
Vibration Form
Platform Vibration
moulding mode
load automatically.vibration moulding
Pallet Size
880*850mm
Molding cycle
15-20s
Overall Power
37KW
Vibration Force
45KN
Total Mass
7T
Demolding method
Hydraulic
Factory Area
1200m2
Products Description

Characteristics 1

This equipment is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient. easy-operated and easy-maintained. Block molding mainly by hydraulic. machinery as sideline. vibrate and press to finish molding blocks. The compressive strength of all blocks more than 15 MPa. compactness is high. impermeability and freeze resistance is better. and excellent capacity of sound insulation. heat insulation. insulation.external dimensions are precise. the blocks are more consistency. low waster rate.

Characteristics 2

A high degree of automation. intelligent electronic control. automatic process is controlled by advanced PLC(Programmable Controller). input and store of process data and touch screen for blocks. it have ideal of flexible Human Conversation Interface. PLC contain advanced safe logic circuit to control the action interlock. also contain fault diagnosis system

Characteristics 3

Good reliability. Hydraulic system preference for to improved technology and perfected workmanship of design. Use independent integrated type hydraulic station. Avoid influence of dust and main machine vibration for hydraulic system. Make sure process reliability of hydraulic system.

Characteristics 4

Good adaptability of raw material. advanced step vibration molding technology. Adjusting measures to differing conditions. Use of all kinds of waste ash and slag. reasonably reduce the dosage of cement. make many kinds of high quality bearing or non-bearing blocks.
Common blocks theoretical Capacity and common blocks samples
Type
Size
(mm)
Molding cycle
Qty/Mould
(pcs)
Qty/hour
(pcs)
Qty/8hr
(pcs)
Hollow block
400x200x200
15-20s
6
1080-1440
8640-11520
Hollow block
400x150x200
15-20s
8
1440-1920
11520-15360
Solid brick
240x115x53
15-20s
32
5760-7680
46080-61440
Rectangular brick
200x100x60
20-25s
21
2160-2880
17280-23040
Zigzag brick
225×112.5×60
20-25s
15
2160-2880
17280-23040
Packaging And Shipping

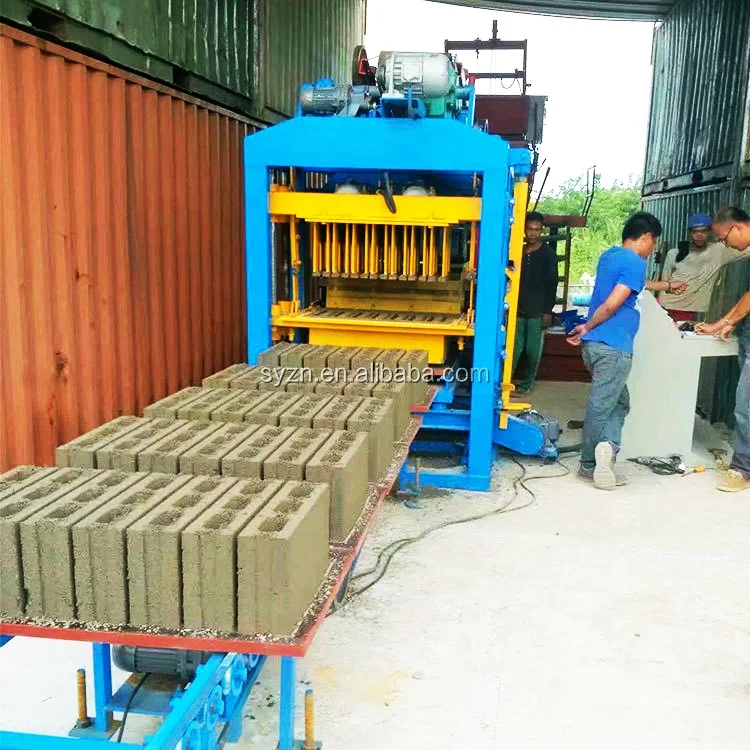

Customer Visiting and customer working site
Company Profile

company simple introduction

Shandong shiyue intelligent machinery CO.. LTD is the leading supplier of concrete machinery and plant .We have two factory areas .covering more than 200.000 square meter areas .more than 50000 square meter workshops . more than 300 rich experienced engineers and technical persons.Our machine are well applied to more than 108 countries and areas. We customize different kinds of machine according to customers' local requests rather than just promote localized products to overseas clients from all over the world.We firmly believe"quality creates value. profession accomplishes success".
FAQ
1> Is this block machine suitable for us to use?Answer:Could you pls tell us the investment plan?the capacity you want?what kind of bricks do you want to make?Then the most suitable model will be recommended to you..2>Which industry did this block machine usually be used in?Answer: Hollow Block.Muticelullar bricks.Paving bricks.Standard bricks.etc3>How to use the block machine?Answer: We will send the operating manual to you or arrange engineer fly to your site for installation and training after you purchase the machine.4>How about the after sale service of block machine?Answer: 1 year guarantee for the whole machine (without the spare parts).good machine no need after sale service.we keep the superior quality machine for you. 5>what's your payment termour common payment is 30% deposit by T/T before arrange the machine production.70% balance before the delivery.if other payment term.we can negotiation.
Customer Visiting and customer working site
