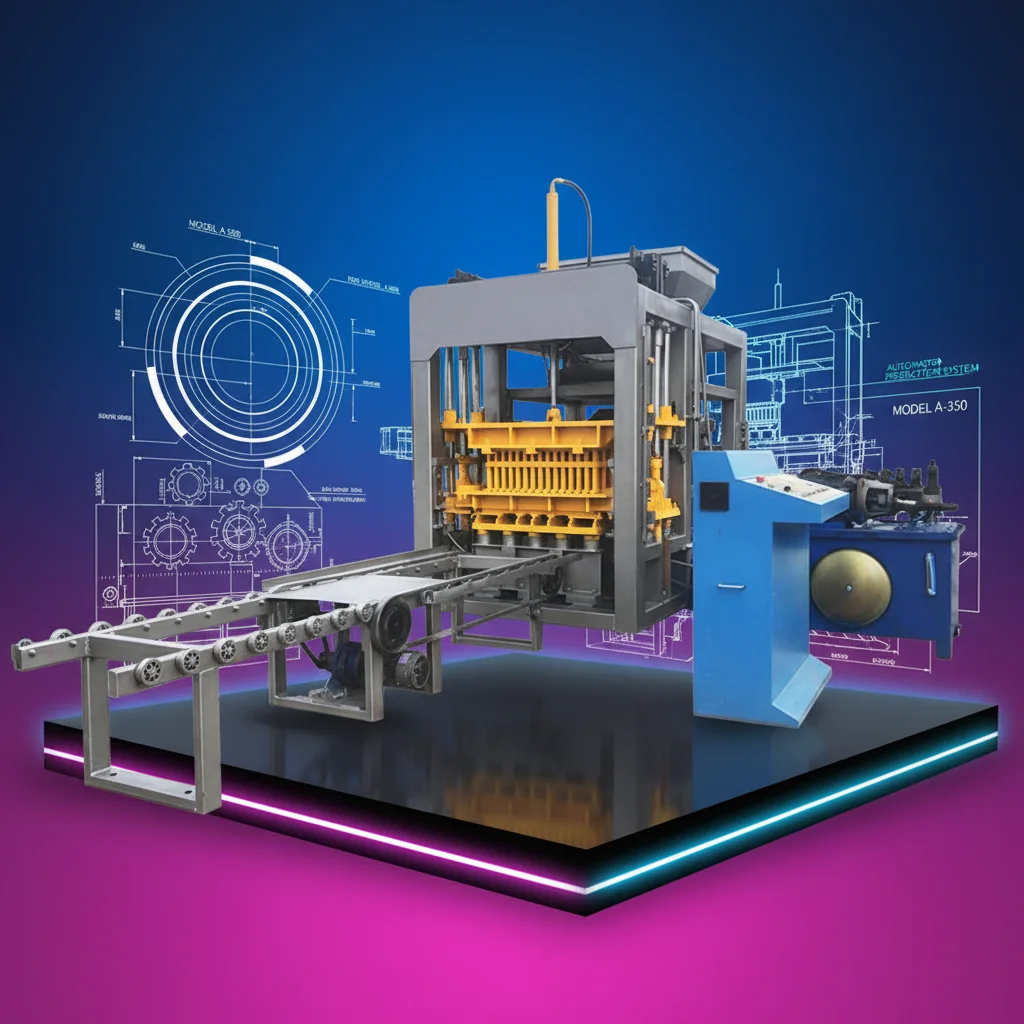

QT5-15 Qt5-15 Block Machine Hollow Blocks Maker Machine

Main technical parameters Overall Dimension7400*1950*2800mmvibration frequency0-60HZVibration FormPlatform Vibrationmoulding modeload automatically.vibration mouldingPallet Size1100x550mmMolding cycle15-20sOverall Power32 KWVibration Force80 KNTotal Mass5000kgsDemolding methodHydraulicFactory Area1000m2 Products Description 1.This machine can use flyash. slag. gangue and other kind industrial residue then with sand. water. crushed stone. cement all kind material to make all kind hollow block. paver brick. solid bricks just […]

CE Certified
European Standards
Ships 15-30 Days
Fast Delivery
108+ Countries
Global Export
After-Sales Support
Training Included
Get Price & Quote WhatsApp Now
24h Response
Free Technical Consultation

Product Details

Main technical parameters
Overall Dimension
7400*1950*2800mm
vibration frequency
0-60HZ
Vibration Form
Platform Vibration
moulding mode
load automatically.vibration moulding
Pallet Size
1100x550mm
Molding cycle
15-20s
Overall Power
32 KW
Vibration Force
80 KN
Total Mass
5000kgs
Demolding method
Hydraulic
Factory Area
1000m2
Products Description
1.This machine can use flyash. slag. gangue and other kind industrial residue then with sand. water. crushed stone. cement all kind material to make all kind hollow block. paver brick. solid bricks just changing the moulds. And the percentage of the flyash can reach 70%.2.The whole process of this machine is controlled by PLC and powered by the hydraulic system. Monitoring with the approach switch. machinery. electric. hydraulic and vibrating system work together to make pallets feeding. material feeding. vibrating. demoulding process work automatically. And its characteristic is high efficient. easy-operated and easy-maintained.3.All the electrical and hydraulic parts are original imported or with China famous brand. So this machine is stable and with less faults. Also it is can be used many years and easy to maintaining.4.Block molding mainly by hydraulic. machinery as sideline. vibrate and press to finish molding blocks. Our machine is assembled with our own patent vibrating system and with high power and frequency.5.The compressive strength of all blocks more than 15 MPa. compactness is high. impermeability and freeze resistance is better. and excellent capacity of sound insulation. heat insulation and dimensions are precise. the blocks are more consistency and low waster rate.6.Moulds system is working synchronized and can ensure the products with same thickness and stable.7.Products come out together then can be stacked efficient and cut off the power consumption and the labour cost.8. This machine is specially for making standard solid bricks and is the better option for environmental protection and construction equipments.

Electronically controlled intelligent

Automatic process of selection of foreign advanced PLC (Programmable Logic Controller) intelligent control. with products process data input. storage. touch screen. ideal. flexible interactive interface. Imports of electrical and hydraulic components and essentially trouble-free operation. random testing of advanced control systems for remote control of the two systems. fault diagnosis.

Hydraulic system reliability

Preferred technique. well-made hydraulic parts. supporting reasonable hydraulic system. design using independent integrated hydraulic station. avoid the host vibration. dust influence hydraulic system. in order to ensure the reliability of the hydraulic system.

Block machine with strong adaptability

The vertical station mode resonance. automatic FM-AM. and realize the "more function with one machine". through the simple replacement of the mold. the products can quickly adjust production. the maximum extent to meet the market demand. so that the equipment maximize performance.

Component of block machine and function

Block machine is consisted of: pallet feed machine. block making machine. storage hopper. conveyor. hydraulic unit. PLC control cabinet
Common blocks theoretical Capacity and common blocks samples
Type
Size
(mm)
Molding cycle
Qty/Mould
(pcs)
Qty/hour
(pcs)
Qty/8hr
(pcs)
Hollow block
400x200x200
15-20s
5
900-1200
7200-9600
Hollow block
400x150x200
15-20s
6
1080-1440
8640-11520
Solid brick
240x115x53
15-20s
32
5760-7680
46080-61440
Rectangular brick
200x100x60
20-25s
25
3600-4500
28800-36000
Zigzag brick
225×112.5×60
20-25s
16
2304-2880
18432-23040
Packaging And Shipping
Customer Visiting and customer working site
Company Profile

company simple introduction

Shandong shiyue intelligent machinery CO.. LTD is the leading supplier of concrete machinery and plant .We have two factory areas .covering more than 200.000 square meter areas .more than 50000 square meter workshops . more than 300 rich experienced engineers and technical persons.Our machine are well applied to more than 108 countries and areas. We customize different kinds of machine according to customers' local requests rather than just promote localized products to overseas clients from all over the world.We firmly believe"quality creates value. profession accomplishes success".
FAQ
1> Is this block machine suitable for us to use?Answer:Could you pls tell us the investment plan?the capacity you want?what kind of bricks do you want to make?Then the most suitable model will be recommended to you..2>Which industry did this block machine usually be used in?Answer: Hollow Block.Muticelullar bricks.Paving bricks.Standard bricks.etc3>How to use the block machine?Answer: We will send the operating manual to you or arrange engineer fly to your site for installation and training after you purchase the machine.4>How about the after sale service of block machine?Answer: 1 year guarantee for the whole machine (without the spare parts).good machine no need after sale service.we keep the superior quality machine for you. 5>what's your payment termour common payment is 30% deposit by T/T before arrange the machine production.70% balance before the delivery.if other payment term.we can negotiation.
