Home Products High quality block machine Qt4-18 automatic hydraulic cement block machine concrete hollow paving machine a brique building material block maker machine
Qt4-18 automatic hydraulic cement block machine concrete hollow paving machine a brique building material block maker machine High quality block machine
High quality block machine
Concrete Machinery

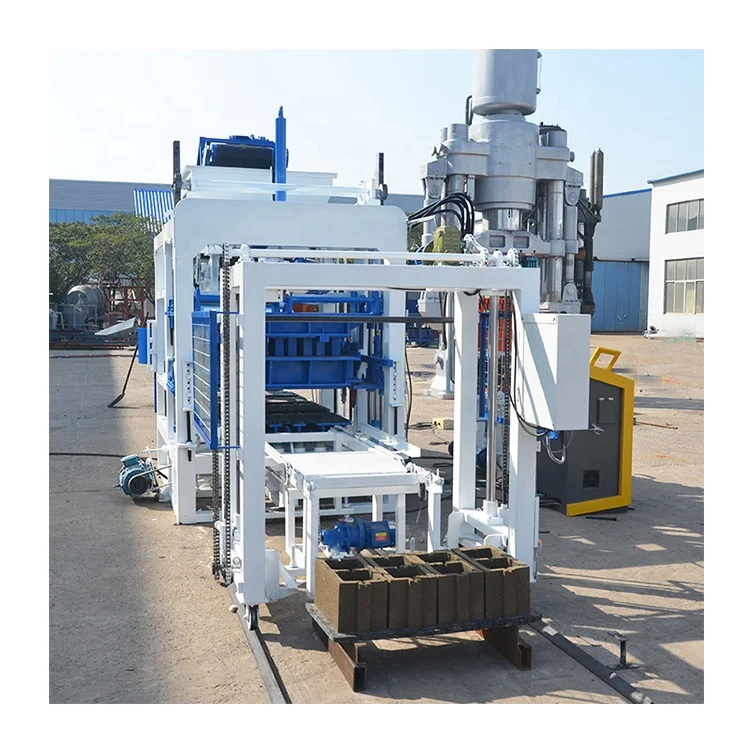

Qt4-18 automatic hydraulic cement block machine concrete hollow paving machine a brique building material block maker machine

Product Description QT4-18 SHIYUE top 10 concrete block making machine m block best introductionFor QT4-18 machine maybe you have following question?Q1: What machines do I need for this production?A1: 1.the mixer is used to mix the material to be average 2.the conveyor is for deliver the material to the machine 3.the host machine for the […]

CE Certified
European Standards
Ships 15-30 Days
Fast Delivery
108+ Countries
Global Export
After-Sales Support
Training Included
Get Price & Quote WhatsApp Now
24h Response
Free Technical Consultation

Product Details

Product Description

QT4-18 SHIYUE top 10 concrete block making machine m block best introduction

For QT4-18 machine maybe you have following question?
Q1: What machines do I need for this production?
A1: 1.the mixer is used to mix the material to be average 2.the conveyor is for deliver the material to the machine 3.the host machine for the machine forming 4. the automatic stacker Place the bricks on the board. stack them up. and move them to a dry place with a trolley 5.trolley and tools is free 6.you need choose the mould you want to do 7.pallet you can choose for loading and place the formed brick and place them here for drying. I suggest buy 300-500 pieces.

Q2: What bricks can be produced?
A2: Hollow.solid.paver in all size.Normally 8 inch.6 inch.5 inch.4 inch.If you need other size please contact me.

Q3: What is a pallet? What is its use in the production process?
A3: The pallet is actually used to place the newly made bricks during the brick production process. It is convenient for us to move the bricks to a dry and ventilated place before the bricks are completely fixed and wait for the bricks to dry and form.I will show you the picture and the video.

Q4:What is the machine output?
A4: Hollow 400x200x200 mm.4 pcs/mould .360pcs/hour.2880pcs/day.If you want to know other size.please send message to me.

Q5: Is there anything I can do without buying?
A5: 1)Mixer if you have.you can not buy.2) pallet is an optional part.which material is fiber glass.If you have in your local
market.some may do the wooden pallet is also can be used.It up to you.

1.It is a kind of semi-automatic machine based on the original medium and small-scale block machine.
2.It also makes the mould and the squeeze head works more precise.
3.The bed mould vertical vibration and upper mould compression vibration improving the efficiency greatly
4.It manufactures blocks with more average density and higher strength because of the above four reason.
QT4-18 block making machine can make the paver. solid.hollow curbstone only need change the mould. It is easy to operate.It adopts the hydraulic station so the pressure is high and make machine runs stable..It can protect machine then will make machine's use life much longer.
Always ship to Jamaica. including Saint Thomas.Kingston. Saint Catherine. Manchester. Clarendon. West more land and so on. Machines are working very well with high production efficiency. block machine has become one of most popular block machine brand in Jamaica Welcome your inquiry. Shiyue factory will help you to achieve success in block business
Specification
Product name
QT4-18 SHIYUE top 10 concrete block making machinemachin block best
Overal dimension
3900*1600*2300mm
MOLDING CYCLE
15-25s
Exciting power
40-50KN
Power
24KW
Mixer
JQ350
Pallet size
850x550x25mm
Total weight
3T
Applied products
paver. solid.hollow curbstone
Raw materials
Crushes stones.sand.cement.dust.fly ash and so on.
Production capacity
Type
Size(mm)
Pcs/Mould
Pcs/Hr
Pcs/8hr
Hollow block
400*200*200
15-20S
1200-1680
9600-13440
Hollow block
400*150*200
15-20S
1800-2400
14400-19200
Solid brick
240*115*53
15-20S
3240
16200-19440
Block Samples


Details
Company Profile
About us
Shandong shiyue intelligent machinery CO..LTD is the leading supplier of concrete machinery and plant .We have two factory areas .covering more than 200.000 square meter areas .more than 50000 square meter workshops .more than 300 rich experienced engineers and technical persons.Our machine are well applied to more than 108 countries and areas. We customize different kinds of machine according to customers' local requests rather than just promote localized products to overseasclients from all over the world.We firmly believe"quality creates value. profession accomplishes success".
Packing & Delivery
Nude packing in a 20GP.and also load about 500 pcs of pallets for your needs.
