Paver Intmegadrive Concrete Cement Block and Brick Making Machine Automatic Clay Brick 1200 Brazil Multi-usage Turkey Products High quality block machine
High quality block machine
Concrete Machinery

Paver Intmegadrive Concrete Cement Block and Brick Making Machine Automatic Clay Brick 1200 Brazil Multi-usage Turkey Products

Products Description QTJ4-35 Mechanical manual block machine adopts four-lead. and super-strong vibration motor. And the upper mould with the bottom mould compression make the brick with high quality.more important. various kinds of materials can be used.which improves the efficiency greatly. QTJ4-35 block machine specificationOverall Dimension2050 x 1660 x 1900 mmMain Vibration FormMotor VibrationPallet Size850*450*20mmMolding cycle35sOverall […]

CE Certified
European Standards
Ships 15-30 Days
Fast Delivery
108+ Countries
Global Export
After-Sales Support
Training Included
Get Price & Quote WhatsApp Now
24h Response
Free Technical Consultation

Product Details

Products Description
QTJ4-35 Mechanical manual block machine adopts four-lead. and super-strong vibration motor. And the upper mould with the bottom mould compression make the brick with high quality.more important. various kinds of materials can be used.which improves the efficiency greatly.
QTJ4-35 block machine specification
Overall Dimension
2050 x 1660 x 1900 mm
Main Vibration Form
Motor Vibration
Pallet Size
850*450*20mm
Molding cycle
35s
Overall Power
9.8kw
Vibration Force
35KN
 QTJ4-35 Production Capacity
Size
(mm)
Molding cycle
Qty/Mould
(pcs)
Qty/hour
(pcs)
Qty/8hr
(pcs)
400x200x200
35-40s
4
360-408
2880-3264
400x150x200
35-40s
5
360-510
2880-4080
240x115x53
40-50s
21
1512-1890
12096-15120
200x100x60
40-50s
14
1008-1260
8064-10080
225×112.5×60
40-50s
9
648-810
5184-6480

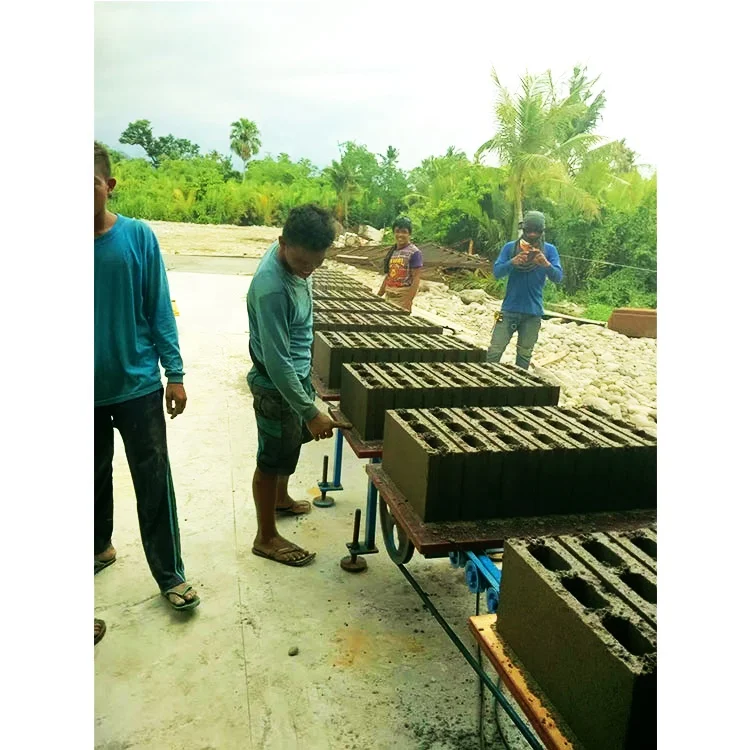

Finished Blocks
Blocks Samples
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine.
*Training how to use the machine.
* Engineers available to service machinery overseas.
Company Profile

Shiyue Machinery is a professional manufacturer which is engaged in independently researching and developing. manufacturing and selling crushing equipment.block machine etc construction building machines. We have exported product to many countries. such as Mongolia. Russia. Philippines.India. Vietnam. Uzbekistan. Kyrgyzstan. Kazakhstan. Nigeria. South Africa.Oman .Botswana. America etc. What’s more.we receive good feedback about service and quality. We are not main for sales. but also for development of the market all over the world. Do our best to satisfy customers’ need and gurantee quality is our principal .With 27 years’ brick block machine manufacture & export experience.welcome all the customers to our company and build business relationship with us
Packaging And delivery
customer working site
