Product Details

Products Description

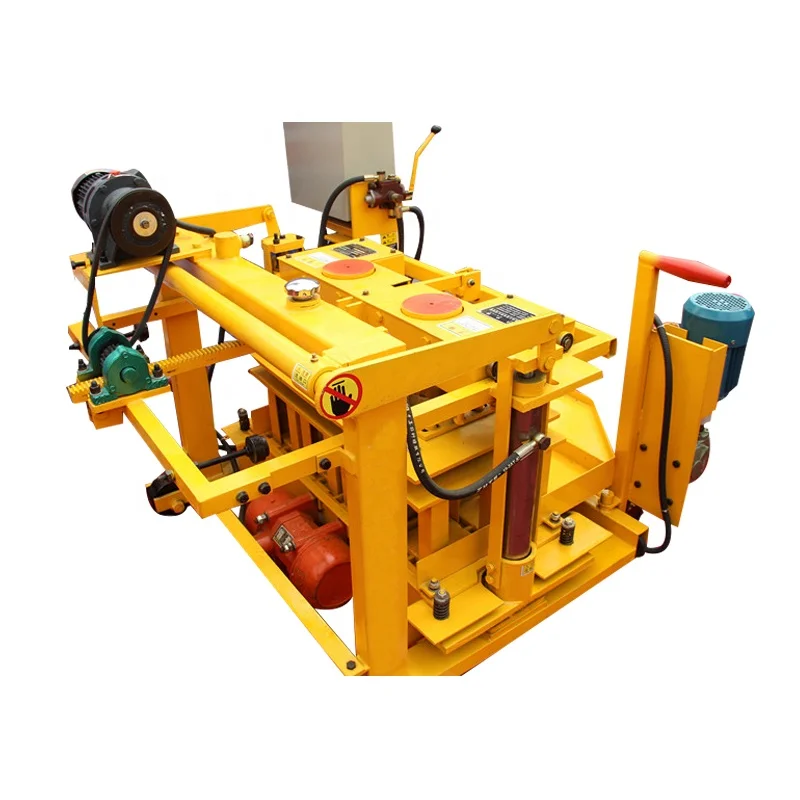

QMY4-30 MOBILE BLOCK MACHINE
QMY4-30 Mobile hydraulic multifunctional brick making machine
Advance technology:advanced design. structure is reasonable. it uses excitation mold box. hydraulic transmission. automatic transmission. Manual Transmission. move forward. move back. corner. etc advanced technology.small volume. high output. agile operation. low Energy high-efficiency.

High quality:choosing high quality steels. good welding technique. hydraulic system includes excellent fittings from Taiwan. which makes machine durable long service life: precision spare parts prolong service life.

Production step

1.Initialization??)Rise mould to push to back.2)Drop mould to ground.2.Operation??)Mix material .make it to down mould box.
2)Turn on vibratory motor.use handle to make mate rial ordered to mold box.3)Put top mold to above of down mold and push handle to make brick out of mold.make top mold pressure head goes into down mold box after top mold
4)press over.stop vibrate .turn on oil pump motor.flare off reversing handle .down mold rises .
5)brick go out of mold brick moves forward and stop automatically. pushing reversing handle . make down mold goes to ground . push top mold to back .put material to hopper again .return to step A .recycled.
block Machine main technical Parameter
Dimension
1300 x 1500 x 1000 mm
Total Mass
950kgs-1000kgs
Hydraulic Method
Mold Vibration
Exciting Power
28.6KN
Excitation Frequency
4500(r/min)
Total Power
5.95kw
Molding Cycle
30 s
Capacity
3000 pcs/day(8hours)
Raw Material
concrete. sand.cement. fly ash. lime. gypsum.etc

Wide Material for your option

Any one or two of them .stone dust .stone nitrate .construction waste .slag .mine tailings .river sand .coal gangue .porcelain granule .lime .carpolite .sandrock .etc..
This machine is suitable for mountainous area.hilly area.mine industrial area. clay control area. suburbs.desert.coastal area. etc.It is benifit for Individual owner production to be rich.
Blocks Samples
You can choose the size you want to make. or send us the design of the block you want for mold
