Stationary block machine
Products Description QTJ4-40 block machine introduction1.Based on the former block machine. this type block machine is the reformed machine with reasonable design. favorable property. and super strong vibration motor. And it manufactures bricks with good quality. large density. and high strength.2.This machine adopts top die push and pull and automatic scraper. which is simple to […]
QTJ4-40 block machine parameters | ||
Capacity | 2800pcs/8hours | |
Raw material | Concrete. cement. fly ash. crushed stone. sand . dust. gravel. slag.etc. | |
Applied Products | Concrete blocks. hollow/solid blocks. pavers. interlocking blocks . curbstone. colored pavers .etc. | |
Main Vibration Form | Platform Vibration | |
Vibration Frequency | 2800(r/min) | |
Pallet Size | 850*450mm | |
Ratio of raw material | cement 8%-10%.sand 30%-40% .stone:50%-60%about cement :sand : stone is1:4:5. | |
Machine weight | 1T | |
Factory Area | 200m2 | |
Overall size | 1350*1460*1800mm | |
Worker | 1-3 people | |
QTJ4-40 Production Capacity | ||||||||
Item | Size (mm) | Mould (pcs) | Per hour (pcs) | Per day (pcs) | ||||
1 | 400*200*200 | 4 | 360 | 2880 | ||||
2 | 400*150*200 | 5 | 500 | 4000 | ||||
3 | 225*112.5*60 | 9 | 900 | 7200 | ||||
Fill in your requirements and our export manager will respond within 24 hours with pricing, specs and a customized solution.
Stationary block machine

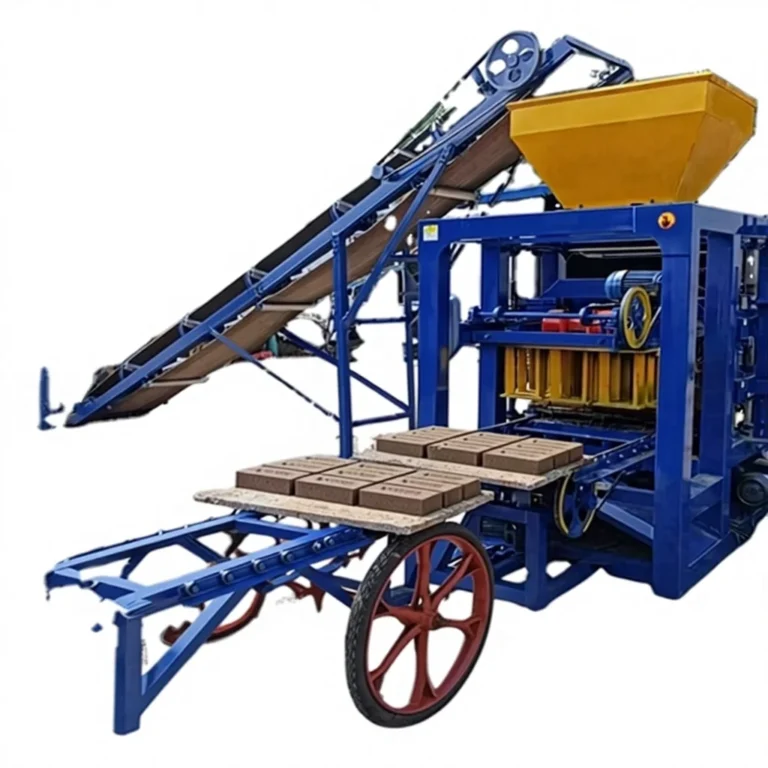

Products Description QTJ4-24 SEMI AUTOMATIC BLOCK MACHINEQTJ4-24 type block forming machine is made up of...
