Block Manufacturing Machine Concrete Block Machine QTJ4-40 Block Machine Making Automatic Stationary block machine
Stationary block machine
Concrete Machinery

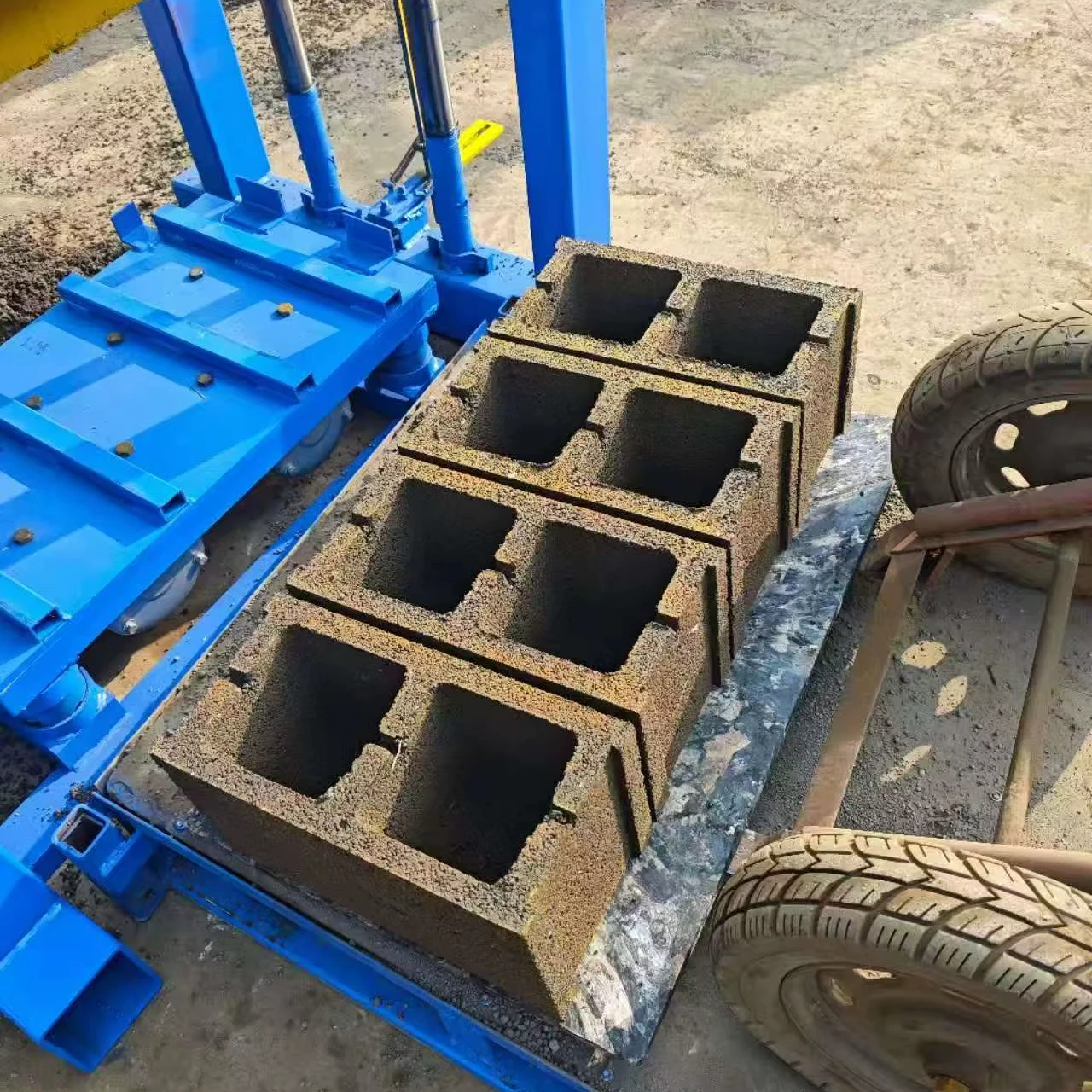

Block Manufacturing Machine Concrete Block Machine QTJ4-40 Block Machine Making Automatic

Products Description Technique ParametersDimension1350x1460x1800mmMachine power10.4kw Molding cycle 40s Capacity 2000-2500pcs/8hours Raw material concrete. sand.cement. fly ash. lime. gypsum.etc. Machine weigh 1.2T Pallet size 850*450*20mm Voltage According to your local voltage For QTJ4-40 machine maybe you have following question?Q1: What machines do I need for this production?A1: A mixer.a host machine. the block mould and pallets.Q2: […]

CE Certified
European Standards
Ships 15-30 Days
Fast Delivery
108+ Countries
Global Export
After-Sales Support
Training Included
Get Price & Quote WhatsApp Now
24h Response
Free Technical Consultation

Product Details

Products Description
Technique Parameters
Dimension
1350x1460x1800mm
Machine power
10.4kw
Molding cycle
40s
Capacity
2000-2500pcs/8hours
Raw material
concrete. sand.cement. fly ash. lime. gypsum.etc.
Machine weigh
1.2T
Pallet size
850*450*20mm
Voltage
According to your local voltage
For QTJ4-40 machine maybe you have following question?
Q1: What machines do I need for this production?
A1: A mixer.a host machine. the block mould and pallets.

Q2: What bricks can be produced?
A2: Hollow.solid.paver in all size.Normally 8 inch.6 inch.5 inch.4 inch.If you need other size please contact me.

Q3: What is a pallet? What is its use in the production process?
A3: The pallet is actually used to place the newly made bricks during the brick production process. It is convenient for us to move the bricks to a dry and ventilated place before the bricks are completely fixed and wait for the bricks to dry and form.I will show you the picture and the video.

Q4:What is the machine output?
A4: Hollow 400x200x200 mm.4 pcs/mould .360pcs/hour.2880pcs/day.If you want to know other size.please send message to me.

Q5:Is there anything I can do without buying?
A5:1)Mixer if you have.you can not buy.2) pallet is an optional part.which material is fiber glass.If you have in your local market.some may do the wooden pallet is also can be used.It up to you.

1.It is a kind of semi-automatic machine based on the original medium and small-scale block machine.
2.It also makes the mould and the squeeze head works more precise.
3.The bed mould vertical vibration and upper mould compression vibration improving the efficiency greatly
4.It manufactures blocks with more average density and higher strength because of the above four reason.
Common blocks theoretical Capacity and common blocks samples
Theoretical productivity
No.
Block size
Pcs/mould
Pcs/hour
Pcs/day
1
400*200*200mm
4
360
2800
2
400*150*200mm
5
450
3600
3
225*112.5*60mm
9
800
6400
