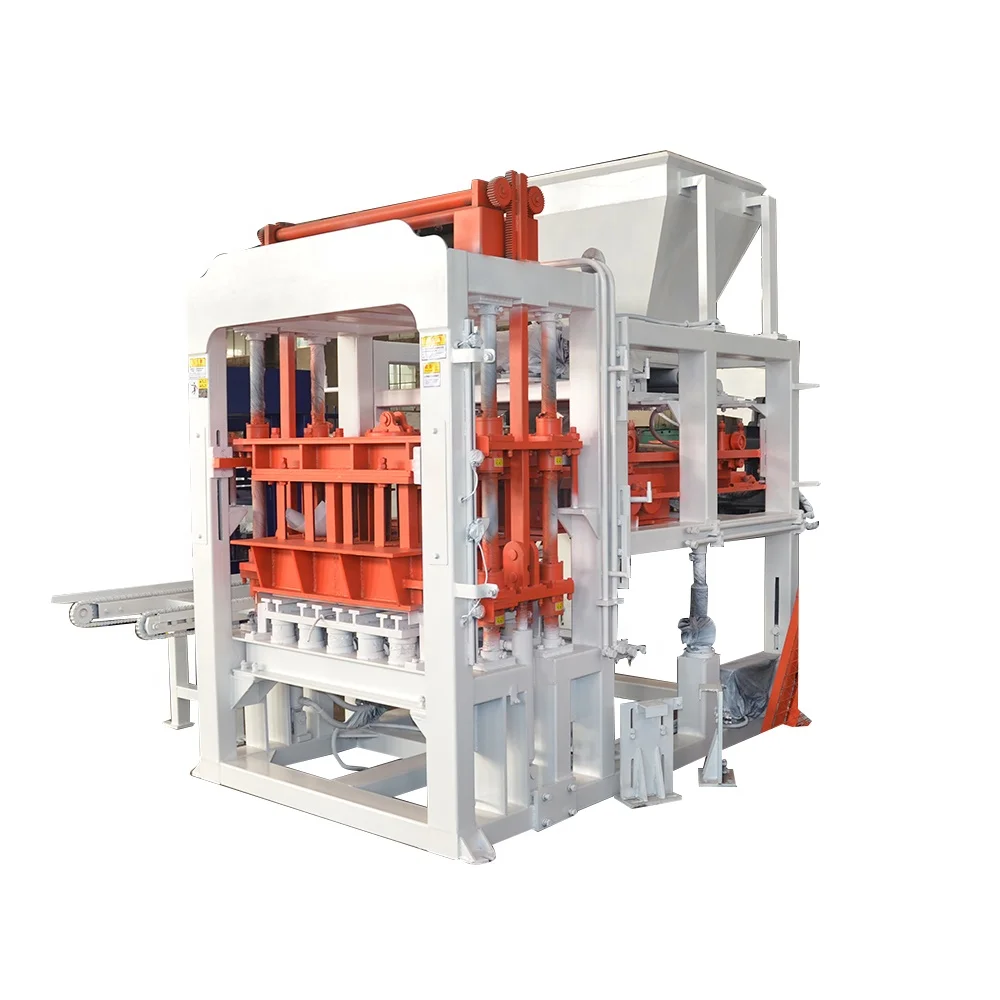

Automatic High Quality QT5-15 PLC Controlled Hydraulic Pressure Concrete Block Making Machine Fully Automatic Production Engine

Products Description QT5-15 block machine introduction1. Particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.2. Adopting synchronization vibration insures the products making average. The frequency can change according to different techniques. Low frequency in feeding material. high frequency vibration makes the […]

CE Certified
European Standards
Ships 15-30 Days
Fast Delivery
108+ Countries
Global Export
After-Sales Support
Training Included
Get Price & Quote WhatsApp Now
24h Response
Free Technical Consultation

Product Details

Products Description

QT5-15 block machine introduction

1. Particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
2. Adopting synchronization vibration insures the products making average. The frequency can change according to different techniques. Low frequency in feeding material. high frequency vibration makes the different material to have an optimal vibration way.
3. The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system. it can achieve scrutiny. controlling. diagnosis.

Product Paramenters
Overall Dimension
7400*1950*2800 mm
Rated Pressure
21 MPa
Main Vibration Form
Hydraulic platform vibration
Cycle Time
15~20 seconds
Vibrating Frequency
2800-4500 rolls/minute
Motors Power
26.5 KW
Pallet Size
1100*550 mm
Weight
6T
Voltage
According to your needs
Main Vibration
Platform vibration
QT5-15 Full automatic block making machine
Size(L*W*H) (mm)
Pcs/mould
Pcs/mould
Pcs/8h
240x115x90
16
2880-3600
23040-28800
400x115x53
32
7680-8800
61440-70400
400x200x200
5
900-1200
7200-9600
Theoretical producivity
Block samples
Product packaging
Company Profile
Certifications
FAQ
1. Is this block machine suitable for us to use?
Could you please tell us the investment plan? the capacity you want? What kind of bricks do you want to make? Then the most suitable model can be recommended to you.
2. Which industry does this block machine usually be used in?
Hollow Block. Muticelullar bricks. Paving bricks. Standard bricks. etc.
3. How to use the block machine?
We will send the operating manual to you after you purchase the machine.
4. How about the after sale service of block machine?
one year guarantee for the whole machine. we keep the superior quality machine for you.
5. What's your payment terms?
Our common payment is 30% deposit by T/T before arrange the machine production. 70% balance before the delivery. if other payment term. we can negotiate.
